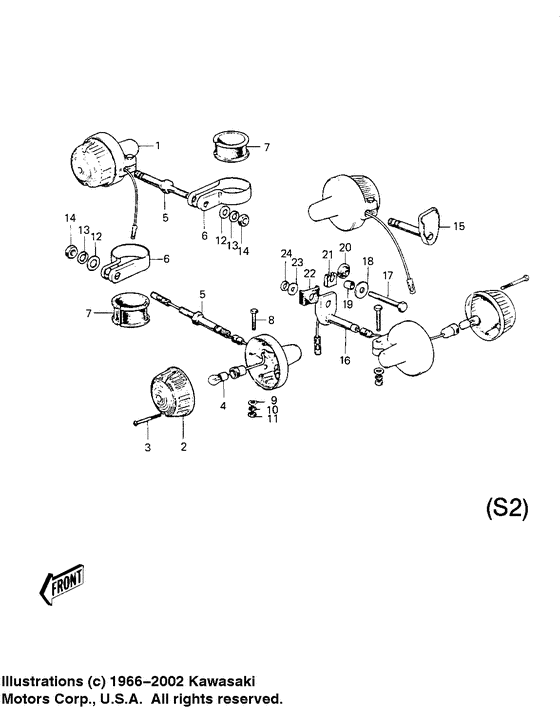

Turn signals (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23040-029 LAMP-TURN SIGNAL |
23040-029 |
from US $83.52 |
||
|
2
|
2
23048-1024 LENS-SIGNAL LAMP |
23048-1024 |
from US $11.36 |
||
|
3
|
3
220E0435A SCREW-PAN HEAD,4X35Screw-pan head,4x35; |
220E0435A |
from US $0.94 |
||
|
4
|
4
92069-055 BULB 12V 32CPBulb 12v 32cp; |
92069-055 |
from US $4.09 |
||
|
5
|
5
23051-047 BRACKET,TURN SIGNALBracket,turn signal; |
23051-047 |
US $72.95 |
||
|
6
|
6
23051-021
BKT-FRT SIGNAL LAMP
|
23051-021 |
— | ||
|
7
|
7
92075-088
DAMPER RUBBER-FR SGNL
|
92075-088 |
— | ||
|
8
|
8
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
8
|
8
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
9
|
9
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
9
|
9
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
10
|
10
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
10
|
10
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
11
|
11
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
11
|
11
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
12
|
12
410B1200 WASHER PLAIN 12MMWasher plain 12mm; |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
12
|
12
410AA1200 WASHER-PLAIN-SMALL,12Washer plain 12mm; |
410AA1200 |
from US $0.95 |
||
|
13
|
13
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
13
|
13
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
14
|
14
315B1200
NUT-HEX-FINE
Nut-hex-fine,12mm; |
315B1200 |
— | ||
| replacement | |||||
|
14
|
14
315AA1200 NUT-HEX-FINENut-hex-fine,12mm; |
315AA1200 |
from US $1.09 |
||
|
15
|
15
23051-018
BKT-RR SIGNL LAMP,R.H
Bkt-rr signl lamp,r.h; |
23051-018 |
— | ||
|
16
|
16
23051-019 BKT-RR SIGNL LAMP,L.HBkt-rr signl lamp,l.h; |
23051-019 |
US $19.84 |
||
|
17
|
17
113N1055 BOLT-UPSETBolt-hex head,10x55; |
113N1055 |
US $38 |
||
| replacement | |||||
|
17
|
17
112N1055 BOLT-UPSETBolt-hex head,10x55; |
112N1055 |
from US $1.71 |
||
|
18
|
18
92022-206 WASHER-PLAIN |
92022-206 |
US $12.47 |
||
|
19
|
19
92027-137
COLLAR
|
92027-137 |
— | ||
|
20
|
20
92075-114
DAMPER RUBBER,A
Damper rubber,a; |
92075-114 |
— | ||
|
21
|
21
23061-003 PLATE-EARTH |
23061-003 |
US $3.14 |
||
|
22
|
22
92075-082
DAMPER RUBBER B
|
92075-082 |
— | ||
|
23
|
23
411B1000 WASHER-PLAIN,10MMWasher,plain,10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
23
|
23
411AA1000 WASHER-PLAIN,10MMWasher,plain,10mm; |
411AA1000 |
from US $0.72 |
||
|
24
|
24
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
24
|
24
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
