	Description	OEM Part #	Price
1	1 23040-037 LAMP ASSY-TURN SIGNAL	23040-037	—
2	2 220E0420 New Genuine Part	220E0420	—
3	3 23058002 WASHER-PLAIN,4MM Washer-plain,4mm;	23058002	from US $2.85
4	4 23048-1001 LENS,TURN SIGNAL LAMP Lens,turn signal lamp;	23048-1001	from US $11
5	5 23050003 GASKET-SIG LAMP LENS Gasket-sig lamp lens;	23050003	from US $4.03
6	6 92069-055 BULB 12V 32CP Bulb 12v 32cp;	92069-055	from US $4.09
7	7 23078-001 BRACKET-TURN SIG LAMP	23078-001	—
8	8 92075-128 DAMPER RUBBER Damper rubber;	92075-128	from US $4.80
9	9 23073-001 BOLT SET-SIG LAMP BKT	23073-001	—
10	10 112G0630 BOLT-UPSET	112G0630	—
	replacement
10	10 112BA0630 BOLT-UPSET	112BA0630	from US $0.86
11	11 410B0600 WASHER-PLAIN-SMALL Washer plain 6mm;	410B0600	—
	replacement
11	11 410AA0600 WASHER-PLAIN-SMALL Washer plain 6mm;	410AA0600	from US $0.79
12	12 461F0600 WASHER-SPRING,6MM Washer spring 6mm;	461F0600	—
	replacement
12	12 461DA0600 WASHER-SPRING,6MM Washer spring 6mm;	461DA0600	from US $0.55
13	13 311B0600 NUT-HEX,6MM Nut 6mm;	311B0600	—
	replacement
13	13 311AA0600 NUT-HEX,6MM Nut 6mm;	311AA0600	from US $0.63
14	14 461F1000 WASHER SPRING 10MM Washer spring 10mm;	461F1000	US $0.95
	replacement
14	14 461DA1000 WASHER-SPRING Washer spring 10mm;	461DA1000	from US $0.90
15	15 315B1000 NUT 10MM Nut 10mm;	315B1000	US $1.11
	replacement
15	15 315AA1000 NUT-HEX-FINE Nut 10mm;	315AA1000	from US $0.92
16	16 92075-158 DAMPER RUBBER,SIG LM Damper rubber,sig lm;	92075-158	from US $3.80
17	17 92027-147 COLLAR	92027-147	from US $8.55

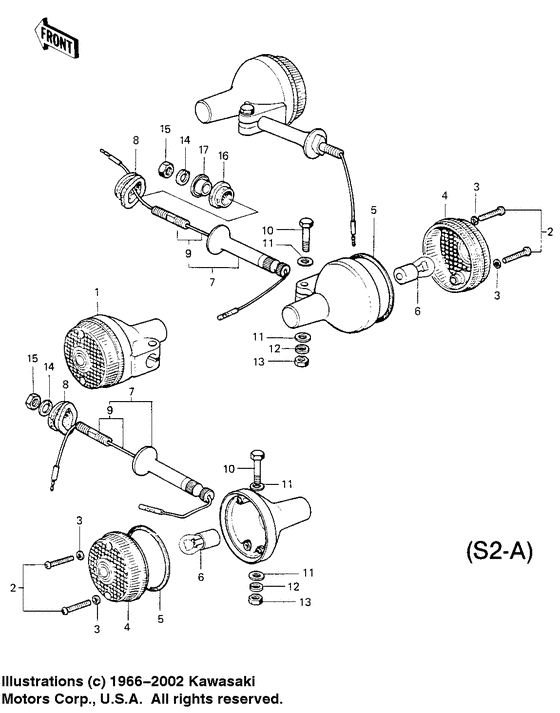

Turn signals (S2-a) Diagram Kawasaki Model "S" S2 Mach II USA 10416736-683938
