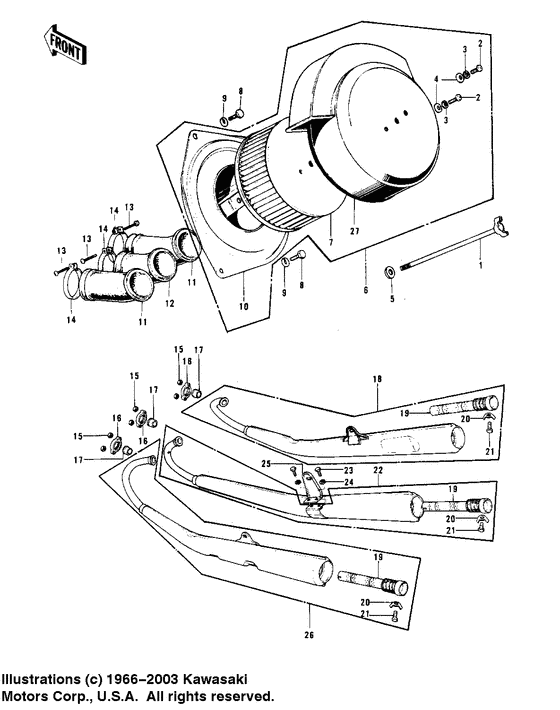

Air cleaner/mufflers ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92003-073
BOLT-AIR CLEANER FIT
|
92003-073 |
— | ||
|
2
|
2
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
2
|
2
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
3
|
3
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
3
|
3
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
4
|
4
410B0400
W-PLAIN-S
Washer plain 4mm; |
410B0400 |
— | ||
| replacement | |||||
|
4
|
4
410AA0400 W-PLAIN-SWasher plain 4mm; |
410AA0400 |
from US $0.78 |
||
|
5
|
5
92022-021
WASHER-PLAIN
|
92022-021 |
— | ||
|
6
|
6
11010-039-21
AIR CLEANER ASY,BLACK
Air cleaner asy,black; |
11010-039-21 |
— | ||
| replacement | |||||
|
6
|
6
11010-090-21
FILTER-ASSY-AIR BLAC
Air cleaner asy,black; |
11010-090-21 |
— | ||
|
7
|
7
11013-026
ELEMENT,AIR,CLNR
Element,air,clnr; |
11013-026 |
— | ||
|
8
|
8
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
8
|
8
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
11011-013
BODY-AIR CLEANER
|
11011-013 |
— | ||
|
11
|
11
11015-024 PIPE-AIR INLT,R.H&L.HPipe-air inlt,r.h&l.h; |
11015-024 |
from US $19.44 |
||
|
12
|
12
11015-025 PIPE-AIR INLET,CENTERPipe-air inlet,center; |
11015-025 |
US $16.61 |
||
|
13
|
13
92011-033 SupercededScrew,pan head,6x35; |
92011-033 |
US $2.57 |
||
| replacement | |||||
|
13
|
13
92009-1357 SCREW,6X35Screw,pan head,6x35; |
92009-1357 |
from US $3.11 |
||
|
14
|
14
92037-1326
CLAMP
|
92037-1326 |
— | ||
| replacement | |||||
|
14
|
14
92170-1438 CLAMP |
92170-1438 |
from US $6.18 |
||
|
15
|
15
92019-007 NUT,LOCK,8MMNut,lock,8mm; S3, s3, s3-a |
92019-007 |
US $4.16 |
||
| replacement | |||||
|
15
|
15
92015-1124 NUT,LOCK,8MMNut,lock,8mm; S3, s3, s3-a |
92015-1124 |
from US $3.17 |
||
|
16
|
16
18069-054 HOLDER,EXHAUST PIPEHolder,exhaust pipe; |
18069-054 |
US $55.26 |
||
|
17
|
17
18070-011
INSERT,EXH PIPE HLDR
Insert,exh pipe hldr; |
18070-011 |
— | ||
|
18
|
18
18001-161
MUFFLER ASSY,R.H
Muffler assy,r.h; |
18001-161 |
— | ||
|
19
|
19
18033-051
BAFFLE TUBE
|
18033-051 |
— | ||
|
20
|
20
92024-016
WASHER LOCK 6MM
|
92024-016 |
— | ||
|
21
|
21
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
21
|
21
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
22
|
22
18001-160
MUFFLER ASSY,
|
18001-160 |
— | ||
|
23
|
23
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
23
|
23
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
24
|
24
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
24
|
24
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
|
25
|
25
18061-042 BRACKET,MUFFLERBracket,muffler; |
18061-042 |
US $32.17 |
||
|
26
|
26
18001-159
MUFFLER ASSY L.H.
|
18001-159 |
— | ||
|
27
|
27
11024-001 RUBBER SEAL,CLENR CAPRubber seal,clenr cap; |
11024-001 |
US $53.98 |
||
