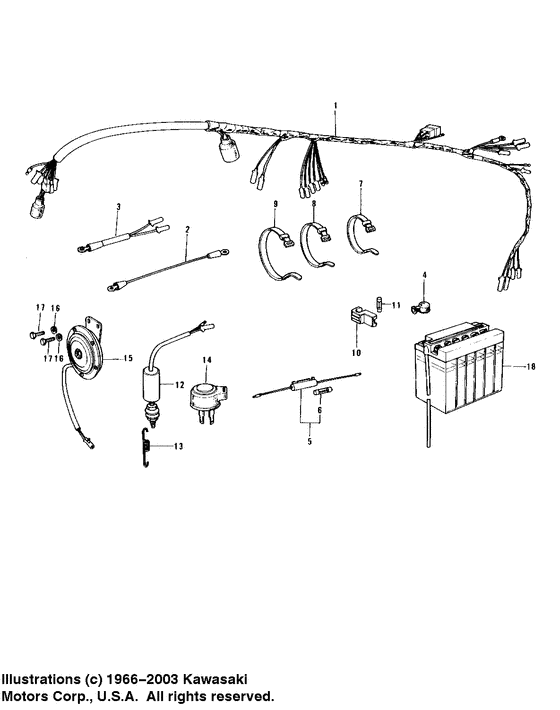

Chassis electrical equipment ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26001-104
WIRING HARNESS,MAIN
Wiring harness,main; |
26001-104 |
— | ||
|
2
|
2
26010-107
New Genuine Part
S3, s3-a |
26010-107 |
— | ||
|
3
|
3
26010-033
WIRE,BATTERY LEAD
Wire,battery lead; |
26010-033 |
— | ||
|
4
|
4
92073-001
GROMMET,STARTER TERMI
|
92073-001 |
— | ||
| replacement | |||||
|
4
|
4
92071-1120 GROMMET,STARTER TERMI |
92071-1120 |
from US $9.19 |
||
|
5
|
5
26004-013
FUSE ASSY
Fuse assy; |
26004-013 |
— | ||
|
6
|
6
26006-002 FUSE 20A |
26006-002 |
US $2.93 |
||
|
7
|
7
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
8
|
8
92072-031 BAND,MIDDLEBand,middle; |
92072-031 |
from US $3.01 |
||
|
9
|
9
92072-056 BAND,WIRING HARNESSBand,wiring harness; |
92072-056 |
from US $3.01 |
||
|
10
|
10
26016-002 HOLDER,SPARE FUSEHolder,spare fuse; |
26016-002 |
US $7.67 |
||
|
11
|
11
26006-002 FUSE 20A |
26006-002 |
US $2.93 |
||
|
12
|
12
27010-020
SWITCH-BRAKE LAMP
S3, s3-a |
27010-020 |
— | ||
|
13
|
13
27011013 SPRING-BRAKE LAMP SWSpring-brake lamp sw; |
27011013 |
from US $8.71 |
||
|
14
|
14
27002-011
RELAY-ASSY
Relay-turn signal; |
27002-011 |
— | ||
| replacement | |||||
|
14
|
14
27002-0003 RELAY-ASSYRelay-turn signal; |
27002-0003 |
from US $68.59 |
||
|
15
|
15
27003-042
HORN
|
27003-042 |
— | ||
| replacement | |||||
|
15
|
15
27003-066
HORN
|
27003-066 |
— | ||
|
16
|
16
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
16
|
16
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
17
|
17
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
17
|
17
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
18
|
18
26012-022 YUA BAT 12N5.5-4A12n5.5-4a |
26012-022 |
US $64.76 |
||
| replacement | |||||
|
18
|
18
K2601-2022
YUA BAT 12N5.5-4A
12n5.5-4a |
K2601-2022 |
— | ||
