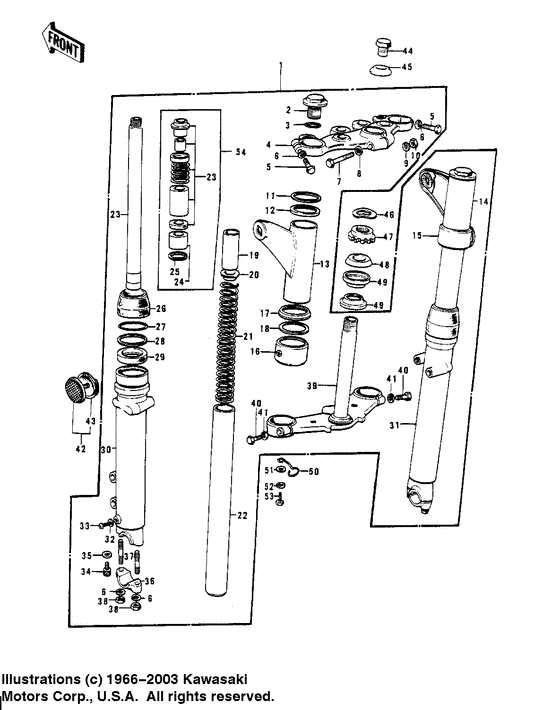

Front fork ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44001-144 FORK-FRONTS3, s3 & s3-a |
44001-144 |
US $1,170.40 |
||
|
2
|
2
44041-037 BOLT-FORK FITTING |
44041-037 |
US $44.50 |
||
|
3
|
3
92055-1012 O RING,FORK TOP"o" ring,fork top; |
92055-1012 |
from US $3.89 |
||
|
4
|
4
44039-051 HEAD-STEERING STEM |
44039-051 |
US $161.66 |
||
|
5
|
5
44041-044
BOLT-STEERING STEM HD
|
44041-044 |
— | ||
|
6
|
6
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
6
|
6
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
7
|
7
44041-042
BOLT-STEERING STEM HD
|
44041-042 |
— | ||
|
8
|
8
463H0800 WASHER-LOCK,8MM |
463H0800 |
US $1.37 |
||
| replacement | |||||
|
8
|
8
463EA0800 WASHER-LOCK,8MM |
463EA0800 |
from US $0.78 |
||
|
9
|
9
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
9
|
9
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
10
|
10
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
11
|
11
44045-039 GASKET,FORK COVERGasket,fork cover; |
44045-039 |
US $4.52 |
||
|
12
|
12
44043-047
WASHER,FORK COVER
Washer,fork cover; |
44043-047 |
— | ||
|
13
|
13
44033-053-21 COVER-L.H FORK,BLACKCover-l.h fork,black; |
44033-053-21 |
US $83.95 |
||
|
14
|
14
44034-053-21
COVER-R.H FORK,BLACK
Cover-r.h fork,black; |
44034-053-21 |
— | ||
|
15
|
15
44064-009 GUIDE-FORK COVER,R.HGuide-fork cover,r.h; |
44064-009 |
US $17.64 |
||
|
16
|
16
44064-010
GUIDE-FORK COVER,L.H
Guide-fork cover,l.h; |
44064-010 |
— | ||
|
17
|
17
44032-005
CAP,FORK COVER
Cap,fork cover; |
44032-005 |
— | ||
|
18
|
18
44045-029
GASKET FORK COVER
|
44045-029 |
— | ||
|
19
|
19
44028-026 SPACER-FORK SP GUIDE |
44028-026 |
US $12.24 |
||
|
20
|
20
44029-019
GUIDE-FORK SPRING
|
44029-019 |
— | ||
|
21
|
21
44026-043 SPRING-FORK |
44026-043 |
US $72.04 |
||
|
22
|
22
44013-038 TUBE-FORK INNER |
44013-038 |
US $420.21 |
||
|
23
|
23
44023-005 CYLINDER-FORKNo longer available |
44023-005 |
US $91.19 |
||
|
24
|
24
44018-001 PISTON FORKUse for 44023-005 |
44018-001 |
US $12.06 |
||
|
25
|
25
44044-008 CIRCLIP FORK PISTONUse for 44023-005 |
44044-008 |
US $9.36 |
||
|
26
|
26
44010-019
DUST SHIELD-FORK
|
44010-019 |
— | ||
|
27
|
27
44044-005 CIRCLIP OIL SEAL FIT |
44044-005 |
US $9.05 |
||
|
28
|
28
44043-023 WASHER OIL SEAL FIT |
44043-023 |
US $2.95 |
||
|
29
|
29
44009-020
OIL SEAL
Oil seal,fork; |
44009-020 |
— | ||
| replacement | |||||
|
29
|
29
44009-026 OIL SEALOil seal,fork; |
44009-026 |
from US $26.76 |
||
|
30
|
30
44005-046 TUBE,LH,FORK OUTERTube,lh,fork outer; |
44005-046 |
US $342.74 |
||
|
31
|
31
44006-044 TUBE,RH,FORK OUTERTube,rh,fork outer; |
44006-044 |
US $212.67 |
||
|
32
|
32
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
33
|
33
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
33
|
33
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
34
|
34
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
35
|
35
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
36
|
36
44063-006 HOLDER-FRONT AXLE |
44063-006 |
US $25.61 |
||
|
37
|
37
172G0830 STUD,8X30Stud 8x30; |
172G0830 |
from US $1.27 |
||
| replacement | |||||
|
37
|
37
172BA0830 STUD,8X30Stud 8x30; |
172BA0830 |
from US $1.24 |
||
|
38
|
38
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
38
|
38
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
38
|
38
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
39
|
39
44037-058 STEM-STEERING |
44037-058 |
US $170.68 |
||
|
40
|
40
113B1032 BOLT HEX HEAD 10X32 |
113B1032 |
US $19.80 |
||
|
41
|
41
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
41
|
41
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
42
|
42
28001-029
REFLECTOR,REFLEX,FRNT
Reflector,reflex,frnt; S3, s3-a |
28001-029 |
— | ||
|
43
|
43
28016-002
DAMPER RUBBER-REFLEX
|
28016-002 |
— | ||
|
44
|
44
92007-031 BOLT,STEERG STEM HEADBolt,steerg stem head; |
92007-031 |
from US $12.44 |
||
|
45
|
45
92022-230 WASHER,16X41X4.5Washer,steerg stm hd; |
92022-230 |
US $11.72 |
||
| replacement | |||||
|
45
|
45
92200-1273 WASHER,16X41X4.5Washer,steerg stm hd; |
92200-1273 |
from US $7.76 |
||
|
46
|
46
46100003
WASHER,WAVE
Washer,wave; |
46100003 |
— | ||
|
47
|
47
92090-007 NUT, STEERING STEM LOCKNut steering stem lck; |
92090-007 |
from US $7.13 |
||
|
48
|
48
46098-016 CAP, STEERING STEMCap, steering stem; |
46098-016 |
from US $4.75 |
||
|
49
|
49
92047-006 CONE STRNG STEM BERNGCone strng stem berng; |
92047-006 |
from US $9.98 |
||
|
50
|
50
92037-099
CLAMP-CABLE
|
92037-099 |
— | ||
|
51
|
51
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
51
|
51
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
52
|
52
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
52
|
52
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
53
|
53
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
53
|
53
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
54
|
54
44023-005 CYLINDER-FORK |
44023-005 |
US $91.19 |
||
