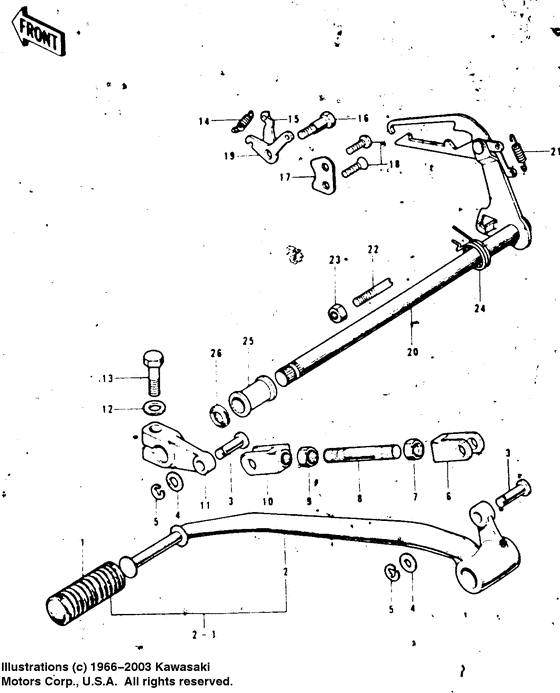

Gear change mechanism ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13157004 DAMPER,CHANGE PEDALRubber change pedal; |
13157004 |
US $3.48 |
||
| replacement | |||||
|
1
|
1
92161-1532 DAMPER,CHANGE PEDALRubber change pedal; |
92161-1532 |
from US $4.87 |
||
|
2
|
2
13242-009
PEDAL ASY,GEAR CHANGE
Pedal asy,gear change; |
13242-009 |
— | ||
|
3
|
3
92043-069
PIN
|
92043-069 |
— | ||
|
4
|
4
92022-1028 WASHER,PLAINWasher,plain; |
92022-1028 |
from US $3.20 |
||
|
5
|
5
482K5000 CIRCLIP 5MMCirclip 5mm; |
482K5000 |
US $44.96 |
||
|
6
|
6
13159-008
CONNECTOR,B
Connector,b; |
13159-008 |
— | ||
|
7
|
7
92017-010
NUT,8MM
Nut,8mm; |
92017-010 |
— | ||
|
8
|
8
92003-074
ROD
|
92003-074 |
— | ||
|
9
|
9
318N0800
NUT,8MM
Nut,8mm; |
318N0800 |
— | ||
|
10
|
10
13159-007
CONNECTOR,A
Connector,a; |
13159-007 |
— | ||
|
11
|
11
13158-007 LEVER-GEAR CHANGE |
13158-007 |
US $76.63 |
||
|
12
|
12
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
12
|
12
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
13
|
13
114N0825
BOLT,8X25
Bolt,8x25; |
114N0825 |
— | ||
|
14
|
14
92081-091 SPRING-COIL |
92081-091 |
US $4.73 |
||
|
15
|
15
13170-005 PLATE-CHNG DRUM LEVER |
13170-005 |
US $8.33 |
||
|
16
|
16
92011-023 SCREW-PAN HEADScrew-pan head; |
92011-023 |
US $3.55 |
||
|
17
|
17
13169-007 PLATE-DRUM LEV POSTON |
13169-007 |
US $13.21 |
||
|
18
|
18
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
18
|
18
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
19
|
19
13236-002
LEVER ASSY-CHNG RETRN
|
13236-002 |
— | ||
|
20
|
20
13161-036 LEVER ASSY GEAR CHNG |
13161-036 |
US $94.46 |
||
|
21
|
21
92144-1720 SPRING,CHANGE LEVERSpring,change lever; |
92144-1720 |
from US $2.79 |
||
|
22
|
22
92001-1401
BOLT,EXCLUSIVE MASS P
Bolt,return spring; |
92001-1401 |
— | ||
| replacement | |||||
|
22
|
22
92001-1455 BOLT,EXCLUSIVE MASS PBolt,return spring; |
92001-1455 |
from US $2.85 |
||
|
23
|
23
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
23
|
23
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
24
|
24
92081-1129 SPRING,TENTIONSpring,tention; |
92081-1129 |
from US $6.34 |
||
|
25
|
25
13171-004
DUST SHIELD-CHNG SHT
|
13171-004 |
— | ||
|
26
|
26
92049-1249 SEAL-OIL |
92049-1249 |
from US $5.44 |
||
