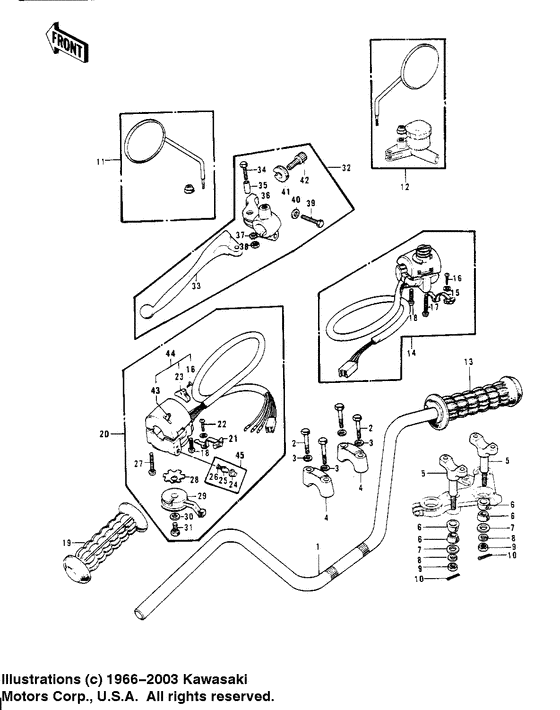

Handlebar ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46003-030
HANDLEBAR
|
46003-030 |
— | ||
|
2
|
2
92001-1405 BOLT 8X38 |
92001-1405 |
from US $11.23 |
||
|
3
|
3
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
3
|
3
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
4
|
4
46012008 HOLDER-HANDLEBARHolder-handlebar; |
46012008 |
from US $24.53 |
||
|
5
|
5
46012010 HOLDER-HANDLEBAR LOWHolder-handlebar low; |
46012010 |
US $25.58 |
||
|
6
|
6
92075-039 DAMPER RUBBER HANDLEDamper rubber handle; |
92075-039 |
from US $3.01 |
||
|
7
|
7
46016-003 CAP, HANDLEBAR HOLDERCap handlebar holder; |
46016-003 |
from US $4.91 |
||
|
8
|
8
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
8
|
8
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
9
|
9
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
9
|
9
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
10
|
10
554A0800 PIN-SNAPPin,snap; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
10
|
10
554DA0800 PIN-SNAPPin,snap; |
554DA0800 |
from US $0.63 |
||
|
11
|
11
56003009 REAR VIEW MIRROR,L.HRear view mirror,l.h; |
56003009 |
US $77.10 |
||
|
12
|
12
56002-020 REAR VIEW MIRROR,R.HRear view mirror,r.h; Option |
56002-020 |
from US $44.64 |
||
|
13
|
13
46019-023
GRIP ASSY-THROTTLE
|
46019-023 |
— | ||
|
14
|
14
46132-007 CASE ASSY,R.HCase assy,r.h; S3, s3-a |
46132-007 |
US $65.09 |
||
|
15
|
15
46043-006
KNOB,LIGHING SWITCH
Knob,lighing switch; |
46043-006 |
— | ||
|
16
|
16
220B0305A
SCREW,PAN HEAD,3X5
|
220B0305A |
— | ||
| replacement | |||||
|
16
|
16
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.79 |
||
|
17
|
17
220B0535 SCREW-PAN-CROS |
220B0535 |
US $1.11 |
||
| replacement | |||||
|
17
|
17
220AA0535 SCREW-PAN-CROS |
220AA0535 |
from US $0.95 |
||
|
18
|
18
220B0522 SCREW-PAN-CROSScrew pan head 5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
18
|
18
220AA0522 SCREW-PAN-CROSScrew pan head 5x22; |
220AA0522 |
from US $0.82 |
||
|
19
|
19
46075-017
RUBBER-L.H GRIP
|
46075-017 |
— | ||
|
20
|
20
46091-014
CASE ASSY,L.H
Case assy,l.h; S3, s3-a |
46091-014 |
— | ||
|
21
|
21
46043-005
KNOB,LIGHTING SW L.H
Knob,lighting sw l.h; |
46043-005 |
— | ||
|
22
|
22
221B0308A
SCREW CNTSNK HD 3X8
|
221B0308A |
— | ||
|
23
|
23
46044-013 KNOB,LIGHTING SW L.HKnob,lighting sw l.h; |
46044-013 |
from US $12.23 |
||
|
24
|
24
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; No longer available use 27010- |
27010-1009 |
from US $6.49 |
||
|
25
|
25
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; No longer available use 27010- |
27010-1009 |
from US $6.49 |
||
|
26
|
26
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; No longer available use 27010- |
27010-1009 |
from US $6.49 |
||
|
27
|
27
220B0530
SCREW-PAN-CROS
Screw pan head 5x30; |
220B0530 |
— | ||
| replacement | |||||
|
27
|
27
220AA0530 SCREW-PAN-CROSScrew pan head 5x30; |
220AA0530 |
from US $0.95 |
||
|
28
|
28
92095-012 WASHER LOCK |
92095-012 |
US $16 |
||
|
29
|
29
46096-009
LEVER,STARTER
Lever,starter; |
46096-009 |
— | ||
|
30
|
30
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
30
|
30
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
31
|
31
112B0608
BOLT-UPSET,6X8
Bolt-upset,6x8; |
112B0608 |
— | ||
| replacement | |||||
|
31
|
31
112AA0608 BOLT-UPSETBolt-upset,6x8; |
112AA0608 |
from US $0.94 |
||
|
32
|
32
46076-044 Lever assy,clutchLever assy,clutch; S3, s3, s3-a |
46076-044 |
from US $45.72 |
||
|
33
|
33
46092015 LEVER-CLUTCHLever-clutch; S3, s3-a |
46092015 |
from US $20.45 |
||
|
34
|
34
92007-020
BOLT HEX HEAD 5X20
|
92007-020 |
— | ||
|
35
|
35
46059-011
COLLAR LEVER
|
46059-011 |
— | ||
|
36
|
36
4609401121 HOLDER,F.BLACKHolder-clutch lev,blk; |
4609401121 |
from US $23.64 |
||
|
37
|
37
464H0500
Washer-lock,5mm
|
464H0500 |
— | ||
| replacement | |||||
|
37
|
37
464EA0500
Washer-toothed
|
464EA0500 |
— | ||
|
38
|
38
312B0500
NUT-HEX
Nut 5mm; |
312B0500 |
— | ||
| replacement | |||||
|
38
|
38
312AA0500 NUT-HEXNut 5mm; |
312AA0500 |
from US $0.78 |
||
|
39
|
39
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
39
|
39
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
40
|
40
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
40
|
40
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
41
|
41
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
42
|
42
46055003 SCREW CABLE ADJUSTScrew cable adjust; S3, s3-a |
46055003 |
from US $11.09 |
||
|
43
|
43
46089-016
SWITCH ASSY,L.H
Switch assy,l.h; S3, s3-a |
46089-016 |
— | ||
|
44
|
44
99990-530
L.H GRIP SWITCH KIT - N.L.A..
Includes ref. #'s 16,23,43 |
99990-530 |
— | ||
|
45
|
45
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; Includes ref. #'s 24-26 |
27010-1009 |
from US $6.49 |
||
