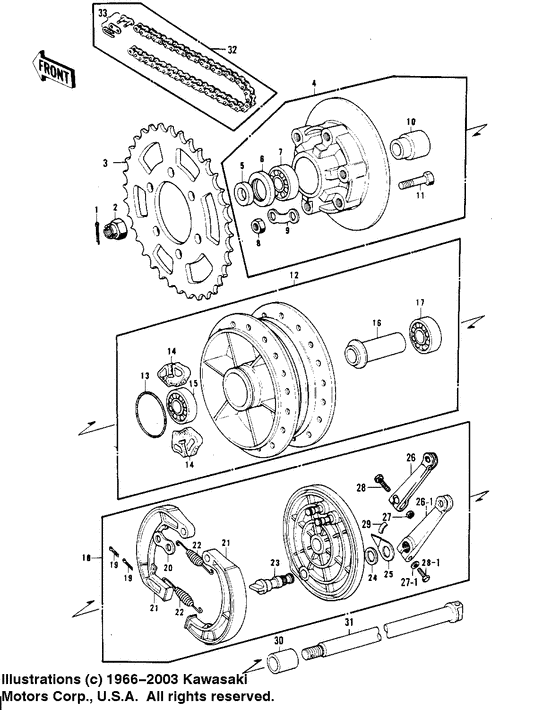

Rear hub/brake/chain ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
550D4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
1
|
1
550AA4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550AA4035 |
from US $0.91 |
||
|
2
|
2
92015-055 NUT,CASTLE,16MMNut castle,16mm; |
92015-055 |
US $10.55 |
||
| replacement | |||||
|
2
|
2
92015-1951 NUT,CASTLE,16MMNut castle,16mm; |
92015-1951 |
from US $6.97 |
||
|
3
|
3
42041-138 REAR SPROCKET,41TRear sprocket,41t; Std, option |
42041-138 |
US $140.58 |
||
|
4
|
4
42008-020 COUPLING ASSY,RR BRKCoupling assy,rr brk; |
42008-020 |
US $316.12 |
||
|
5
|
5
42037-024 COLLAR,REAR AXLECollar,rear axle; |
42037-024 |
US $24.93 |
||
|
6
|
6
92052-006 SEAL-OILOil seal wtc35527; |
92052-006 |
US $14.41 |
||
| replacement | |||||
|
6
|
6
92049-1287 SEAL-OILOil seal wtc35527; |
92049-1287 |
from US $8.24 |
||
|
7
|
7
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
8
|
8
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
8
|
8
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
9
|
9
92088-005 WASHER, SPROCKET LOCKWasher sprocket lock; |
92088-005 |
from US $3.80 |
||
|
10
|
10
42036-019 SLEEVE,REAR AXLESleeve,rear axle; |
42036-019 |
US $46.08 |
||
|
11
|
11
92003-087
BOLT-REAR SPROCKET
|
92003-087 |
— | ||
|
12
|
12
42005-009 DRUM ASSY REAR BRAKE |
42005-009 |
US $223.94 |
||
| replacement | |||||
|
12
|
12
41034-5001 DRUM-ASSY,RR BRK |
41034-5001 |
US $587.84 |
||
|
13
|
13
671B2560 0 RING,60MM"0" ring,60mm; |
671B2560 |
from US $5.39 |
||
|
14
|
14
42014-008
DAMPER REAR HUB SHOCK
|
42014-008 |
— | ||
|
15
|
15
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
16
|
16
42010-007 SPACER,RR HUB BEARINGSpacer,rr hub bearing; |
42010-007 |
US $4.45 |
||
| replacement | |||||
|
16
|
16
42010-008 SPACER RR HUB BEARINGSpacer,rr hub bearing; |
42010-008 |
US $8.01 |
||
|
17
|
17
601B6205Z BEARING BALL #6205Z |
601B6205Z |
US $22.55 |
||
|
18
|
18
42006-060-80 PANEL-ASY,RR BRKPanel-asy,rr brk; S3, s3-a |
42006-060-80 |
US $282.71 |
||
|
19
|
19
550D2025 PIN-COTTER,2.0X25Pin cotter 2.0x25; |
550D2025 |
US $3.37 |
||
| replacement | |||||
|
19
|
19
550AA2025 PIN-COTTER,2.0X25Pin cotter 2.0x25; |
550AA2025 |
from US $1.09 |
||
|
20
|
20
41045-007
WASHER,BRAKE SHOE
Washer,brake shoe; |
41045-007 |
— | ||
|
21
|
21
42019-003 SHOE-BRAKE |
42019-003 |
US $89.86 |
||
| replacement | |||||
|
21
|
21
41048-1122 SHOE-BRAKE |
41048-1122 |
from US $83.98 |
||
|
22
|
22
41049-003
SPRING BRAKE SHOE
|
41049-003 |
— | ||
|
23
|
23
42026-015 CAM SHAFT,REAR BRAKECam shaft,rear brake; |
42026-015 |
US $41.56 |
||
|
24
|
24
41051001 DUST SHIELD BRAKE CAMDust shield brake cam; |
41051001 |
from US $3.17 |
||
|
25
|
25
41085-009
INDICATOR,BRAKE PANEL
Indicator,brake panel; |
41085-009 |
— | ||
|
26
|
26
42029-037
LEVER,REAR BRAKE CAM
Lever,rear brake cam; S3 |
42029-037 |
— | ||
|
27
|
27
41072007 NUT,6MMNut,6mm; S3 |
41072007 |
from US $2.85 |
||
|
28
|
28
112G0640
BOLT-UPSET,6X40
Bolt-upset,6x40; S3 |
112G0640 |
— | ||
|
29
|
29
41084-001
LABEL
|
41084-001 |
— | ||
|
30
|
30
42032-049 COLLAR,REAR AXLECollar,rear axle; |
42032-049 |
US $11 |
||
|
31
|
31
42031-047 AXLE,REARAxle,rear; |
42031-047 |
US $46.01 |
||
|
32
|
32
92057-085 DR CHAIN 530X104E#530 x 104l |
92057-085 |
US $169.29 |
||
|
33
|
33
92058-008 CHAIN JOINT 530#530 |
92058-008 |
US $6.05 |
||
