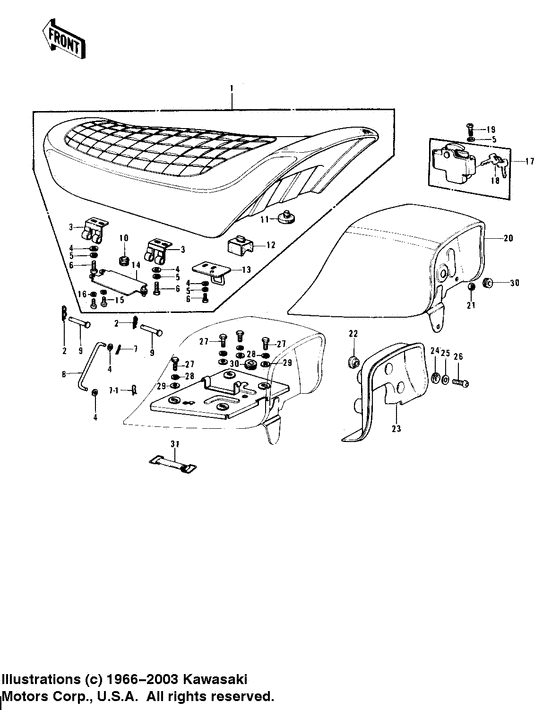

Seat/seat cover ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53001-102
SEAT-ASSY,DUAL
Seat-assy,dual; |
53001-102 |
— | ||
|
2
|
2
92041-003 COTTER PIN |
92041-003 |
from US $3.02 |
||
| replacement | |||||
|
2
|
2
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
3
|
3
53009-017-10 HINGE,BLACKHinge,black; |
53009-017-10 |
US $71.98 |
||
|
4
|
4
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
4
|
4
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
6
|
6
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
6
|
6
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
7
|
7
550D1615
PIN COTTER 1.6X15
Pin cotter 1.6x15; |
550D1615 |
— | ||
| replacement | |||||
|
7
|
7
550AA1615 PIN-COTTER,1.6X15Pin cotter 1.6x15; |
550AA1615 |
from US $0.72 |
||
|
8
|
8
53054-002
STAND,SEAT
Stand,seat; |
53054-002 |
— | ||
|
9
|
9
53011002 PIN |
53011002 |
US $7.57 |
||
|
10
|
10
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
11
|
11
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
12
|
12
92075-156 DAMPER RUBBER-SEAT |
92075-156 |
from US $4.98 |
||
|
13
|
13
53008-024 HOOK,SEATHook,seat; |
53008-024 |
US $107.98 |
||
|
14
|
14
32099011 CASE |
32099011 |
from US $12.99 |
||
|
15
|
15
220B0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220B0410 |
US $0.95 |
||
| replacement | |||||
|
15
|
15
220AA0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220AA0410 |
from US $0.79 |
||
|
16
|
16
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
16
|
16
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
17
|
17
53045-013
LOCK ASSY,SEAT
Lock assy,seat; |
53045-013 |
— | ||
|
18
|
18
27008-055-01 KEY SET,#901Key set,#901; |
27008-055-01 |
US $24.50 |
||
|
19
|
19
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
19
|
19
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
20
|
20
53043-008-2A
BACK REST,C.RED
Back rest,c.red; S3, s3, s3-a, s3-a |
53043-008-2A |
— | ||
|
21
|
21
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
21
|
21
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
22
|
22
92075-169
DAMPER RUBBER
|
92075-169 |
— | ||
|
23
|
23
53057-004
COVER,BACKREST
Cover,backrest; |
53057-004 |
— | ||
|
24
|
24
92075-168
DAMPER RUBBER
|
92075-168 |
— | ||
|
25
|
25
92022-240
WASHER-PLAIN,7MM
Washer-plain,7mm; |
92022-240 |
— | ||
| replacement | |||||
|
25
|
25
92022-1545 WASHER,7X18X1.2Washer-plain,7mm; |
92022-1545 |
from US $1.45 |
||
|
26
|
26
220B0628 SCREW-PAN HEAD,6X28Screw pan head 6x28; |
220B0628 |
US $2.83 |
||
| replacement | |||||
|
26
|
26
220AA0628 SCREW-PAN HEAD,6X28Screw pan head 6x28; |
220AA0628 |
from US $0.95 |
||
|
27
|
27
115G0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115G0818 |
US $1.58 |
||
| replacement | |||||
|
27
|
27
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115BA0818 |
from US $0.94 |
||
|
28
|
28
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
28
|
28
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
29
|
29
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
29
|
29
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
30
|
30
92071-059
GROMMET
|
92071-059 |
— | ||
|
31
|
31
92072-012 BAND TOOLBand tool; |
92072-012 |
from US $4.80 |
||
