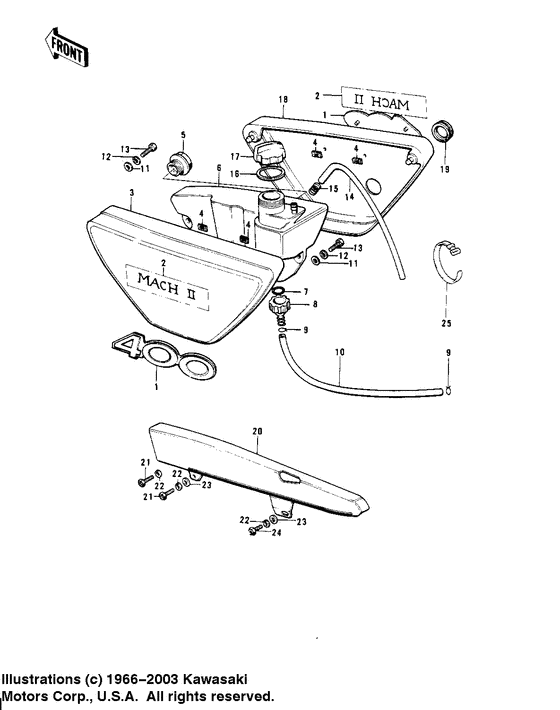

Side covers/oil tank/chain cover ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56018-164
EMBLEM,SIDE COVER
Emblem,side cover; S3, s3-a |
56018-164 |
— | ||
|
2
|
2
56018-167
EMBLEM,SIDE COVER
Emblem,side cover; |
56018-167 |
— | ||
|
3
|
3
36001-043-2A
COVER,L.H SIDE,C.RED
Cover,l.h side,c.red; S3, s3-a, s3, s3-a |
36001-043-2A |
— | ||
|
4
|
4
92018-005 NUT,LOCK,3MMNut,lock,3mm; |
92018-005 |
from US $2.85 |
||
|
5
|
5
52015-005
GAUGE-OIL LEVEL
|
52015-005 |
— | ||
|
6
|
6
52001-040
TANK,OIL
Tank,oil; |
52001-040 |
— | ||
|
7
|
7
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
8
|
8
52020-001
FILTER-OIL
|
52020-001 |
— | ||
|
9
|
9
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
10
|
10
92059-072 PIPE-OIL |
92059-072 |
from US $19.01 |
||
|
11
|
11
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
11
|
11
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
13
|
13
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
13
|
13
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
14
|
14
700Q05720 TUBE-PVC,5X1000 |
700Q05720 |
US $7.52 |
||
| replacement | |||||
|
14
|
14
700Q051000
TUBE-PVC,5X1000
|
700Q051000 |
— | ||
|
15
|
15
92037-141 CLAMP,OIL TANK BREATRClamp,oil tank breatr; |
92037-141 |
US $4.32 |
||
|
16
|
16
92065-085 GASKET-OIL TANK CAP |
92065-085 |
from US $2.95 |
||
|
17
|
17
52003019 CAP-OIL TANK |
52003019 |
from US $6.06 |
||
|
18
|
18
36007-073-2A
New Genuine Part
S3, s3, s3-a, s3-a |
36007-073-2A |
— | ||
|
19
|
19
92071-065
GROMMET-R.H SIDE COV
|
92071-065 |
— | ||
|
20
|
20
36014-050-21
CASE-CHAIN,FR BLACK
Case-chain,fr black; |
36014-050-21 |
— | ||
|
21
|
21
92001-137 BOLT,6X10Bolt,hex head,6mm; |
92001-137 |
from US $3.57 |
||
|
22
|
22
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
22
|
22
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
23
|
23
92022-193 WASHER-PLAINWasher-plain; |
92022-193 |
from US $3.48 |
||
|
24
|
24
92001-121 BOLT,HEX HEAD,6X14Bolt,hex head,6x14; |
92001-121 |
US $2.79 |
||
|
25
|
25
92072-031 BAND,MIDDLEBand,middle; |
92072-031 |
from US $3.01 |
||
