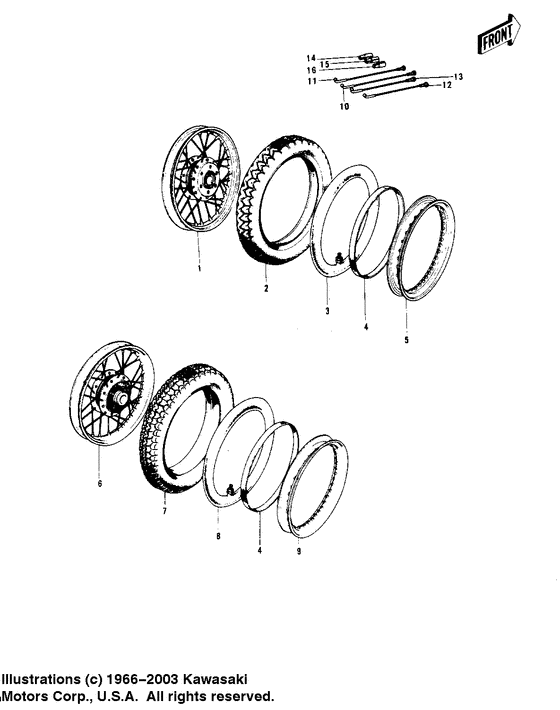

Wheels/tires ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1974
- Model code
- S3
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41074-036 WHEEL ASSY,FRONTWheel assy,front; |
41074-036 |
US $232.97 |
||
|
2
|
2
41021-026
New Genuine Part
|
41021-026 |
— | ||
|
3
|
3
41022-028
TUBE-TIRE,2.75/3/3.6
|
41022-028 |
— | ||
| replacement | |||||
|
3
|
3
41022-1014 TUBE-TIRE,2.75/3/3.6 |
41022-1014 |
from US $37.35 |
||
|
4
|
4
41023-1006
BAND-RIM,100/100-18(D
Band,rim,4.00/5.10-18; |
41023-1006 |
— | ||
| replacement | |||||
|
4
|
4
41023-1070 BAND-RIM,100/100-18(DBand,rim,4.00/5.10-18; |
41023-1070 |
from US $9.19 |
||
|
5
|
5
41025-075
RIM.1.85BX18
|
41025-075 |
— | ||
|
6
|
6
42048-017 WHEEL ASSY-REAR |
42048-017 |
US $290.48 |
||
|
7
|
7
41021-027
New Genuine Part
S3, s3-a |
41021-027 |
— | ||
|
8
|
8
41022-031 TUBE-TIRE,100/100-18( |
41022-031 |
US $52.96 |
||
| replacement | |||||
|
8
|
8
41022-1119 TUBE-TIRE,100/100-18 |
41022-1119 |
from US $46.08 |
||
|
9
|
9
41025-053
RIM,1.85BX18W
Rim,1.85bx18w; |
41025-053 |
— | ||
|
10
|
10
41027-054 SPOKE-ASY,FR INNER -Spoke-asy,fr inner; 102 x 174.5 mm |
41027-054 |
US $8.71 |
||
|
11
|
11
41028-054 SPOKE-ASY,FR OUTERSpoke-asy,fr outer; 83 x 174 mm |
41028-054 |
US $8.71 |
||
|
12
|
12
41027-046 SPOKE-ASY,RR INNERSpoke-asy,rr inner; 104 x 147 mm |
41027-046 |
from US $10.11 |
||
|
13
|
13
41028-045 SPOKE-ASY,RR OUTERSpoke-asy,rr outer; 85 x 146 mm |
41028-045 |
from US $8.68 |
||
|
14
|
14
41075-1007
BALANCER-WHEEL,10G
Weight,balance,10g; |
41075-1007 |
— | ||
| replacement | |||||
|
14
|
14
41075-0011 BALANCER-WHEEL,10GWeight,balance,10g; |
41075-0011 |
from US $6.81 |
||
|
15
|
15
41075-1008
WEIGHT,BALANCE,20G
Weight,balance,20g; |
41075-1008 |
— | ||
| replacement | |||||
|
15
|
15
41075-0012 BALANCER-WHEEL,20GWeight,balance,20g; |
41075-0012 |
from US $6.81 |
||
|
16
|
16
41075-1009
BALANCER-WHEEL,30G
Weight,balance,30g; |
41075-1009 |
— | ||
| replacement | |||||
|
16
|
16
41075-0013 BALANCER-WHEEL,30GWeight,balance,30g; |
41075-0013 |
from US $6.81 |
||
