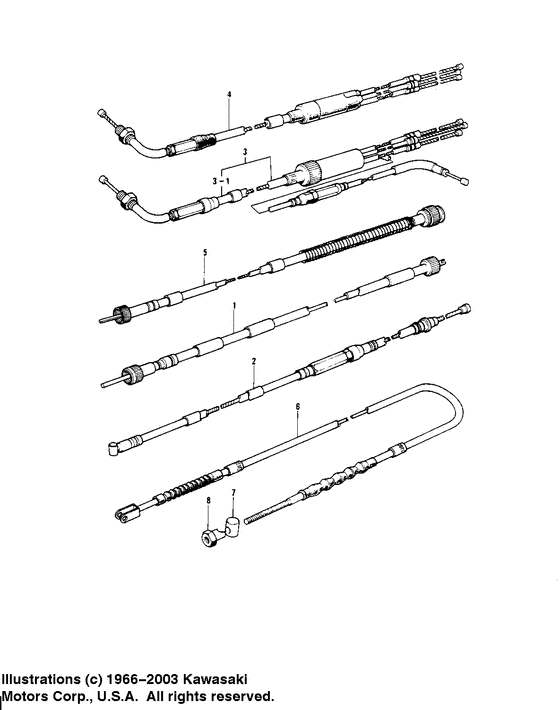

Cables ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54001-041 CABLE,SPEEDOMETERCable,speedometer; |
54001-041 |
US $35.66 |
||
|
2
|
2
54011-053 CABLE,CLUTCHCable,clutch; |
54011-053 |
US $50.54 |
||
|
3
|
3
54012-097 CABLE,COMBINATIONCable,combination; |
54012-097 |
from US $96.11 |
||
|
4
|
4
54017-059 CABLE,STARTERCable,starter; |
54017-059 |
US $63.72 |
||
|
5
|
5
54018-016
CABLE-TACHOMETER
|
54018-016 |
— | ||
|
6
|
6
54022-026 CABLE,REAR BRAKECable,rear brake; |
54022-026 |
US $65.57 |
||
|
7
|
7
92043-053 PIN BRAKE ROD |
92043-053 |
from US $5.28 |
||
|
8
|
8
92015-041
NUT-BRAKE CABLE ADJST
|
92015-041 |
— | ||
| replacement | |||||
|
8
|
8
92015-042 NUT-BRAKE ROD ADJUST |
92015-042 |
from US $3.48 |
||
