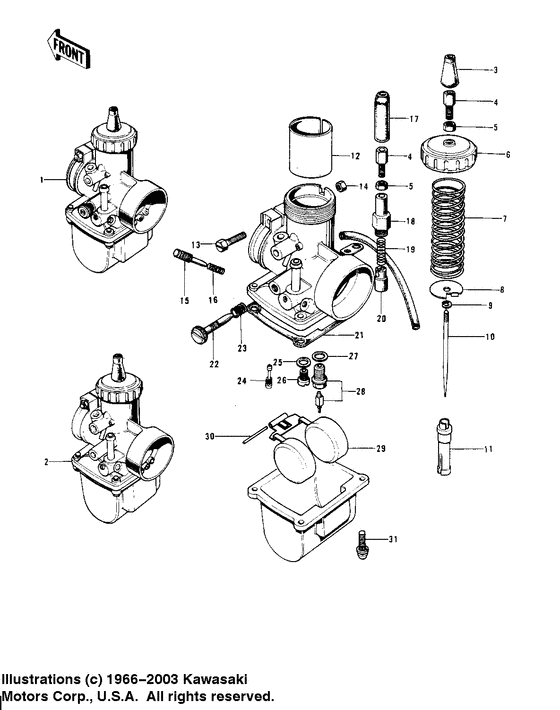

Carburetors ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16001-186
CARBURETOR ASSY,L.H
Carburetor assy,l.h; Vm26sc |
16001-186 |
— | ||
|
2
|
2
16001-187
CARBURETOR ASY,R.H&CN
Carburetor asy,r.h&cn; Vm26sc |
16001-187 |
— | ||
|
3
|
3
16036-007 CAP,CARBURETORCap,carburetor; |
16036-007 |
from US $11.25 |
||
|
4
|
4
16002-004 CABLE ADJUSTER |
16002-004 |
from US $7.93 |
||
|
5
|
5
16003-004 NUT CABLE ADJUST LOCKNut cable adjust lock; |
16003-004 |
from US $4.59 |
||
|
6
|
6
16004-025 CAP,MIXING CHAMBERCap,mixing chamber; |
16004-025 |
from US $22.89 |
||
|
7
|
7
16006-024
SPRING,THROTTLE VALV
Spring,throttle valv; |
16006-024 |
— | ||
|
8
|
8
16007-023 SPRING SEAT,THRTL VLSpring seat,thrtl vl; |
16007-023 |
from US $7.44 |
||
|
9
|
9
16008-010 CIRCLIPCirclip; |
16008-010 |
from US $6.65 |
||
|
10
|
10
16009-047
JET NEEDLE 4EJ4
|
16009-047 |
— | ||
|
11
|
11
16017-079
NEEDLE JET,O-2
Needle jet,o-2; |
16017-079 |
— | ||
|
12
|
12
16025-071 VALVE,THROTTLE CA2.0Valve,throttle ca2.0; |
16025-071 |
US $86.83 |
||
|
13
|
13
16010-004 SCREW CLAMPScrew clamp; |
16010-004 |
from US $3.27 |
||
|
14
|
14
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
14
|
14
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
15
|
15
16014-006
SCREW
|
16014-006 |
— | ||
|
16
|
16
16022-007 SPRING,PILOT AIR SCRESpring-thr stop screw; |
16022-007 |
from US $5.44 |
||
|
17
|
17
16036-005
BOOT,STARTER PLUNGER
|
16036-005 |
— | ||
| replacement | |||||
|
17
|
17
49006-1235 BOOT,STARTER PLUNGER |
49006-1235 |
from US $7.46 |
||
|
18
|
18
16012-008
CAP STARTER PLUNGER
|
16012-008 |
— | ||
|
19
|
19
16013-003 SPRING-PLUNGERSpring-plunger; |
16013-003 |
from US $4.18 |
||
|
20
|
20
16016-002 PLUNGER-ENRICHNERPlunger-enrichner; |
16016-002 |
from US $21.09 |
||
|
21
|
21
16019-013
GASKET FLOAT CHAMBER
|
16019-013 |
— | ||
|
22
|
22
16021-013
SCREW-THROTTLE STOP
|
16021-013 |
— | ||
|
23
|
23
16022-005 SPRING THR STOP SCREWSpring thr stop screw; |
16022-005 |
from US $6.81 |
||
|
24
|
24
92064-021 JET-PILOT,#A20Jet-pilot no 20; Option |
92064-021 |
US $15.26 |
||
| replacement | |||||
|
24
|
24
92064-1043 JET-PILOT,#A20Jet-pilot no 20; Option |
92064-1043 |
from US $9.79 |
||
|
25
|
25
16034-001 WASHER MAIN JETWasher main jet; |
16034-001 |
from US $3.01 |
||
|
26
|
26
92063-093 JET-MAIN,#A85RMain jet no 85r; Option, option, option, option |
92063-093 |
US $12.74 |
||
| replacement | |||||
|
26
|
26
92063-1323 JET-MAIN,#A85RMain jet no 85r; Option, option, option, option |
92063-1323 |
from US $8.71 |
||
|
27
|
27
16029-004 WASHER FLOAT VLV SEATWasher float vlv seat; |
16029-004 |
from US $3.17 |
||
|
28
|
28
16030-005 FLOAT VALVE ASSYFloat valve assy; |
16030-005 |
from US $43.83 |
||
|
29
|
29
16031-016 FLOAT |
16031-016 |
from US $59.56 |
||
|
30
|
30
16032-003
PIN,FLOAT
Float pin; |
16032-003 |
— | ||
| replacement | |||||
|
30
|
30
16032-008 PIN,FLOATFloat pin; |
16032-008 |
from US $4.20 |
||
|
31
|
31
16033-009
SCREW-PAN-WS-CROS
|
16033-009 |
— | ||
| replacement | |||||
|
31
|
31
223AA0416 SCREW-PAN-WS-CROS |
223AA0416 |
from US $0.95 |
||
