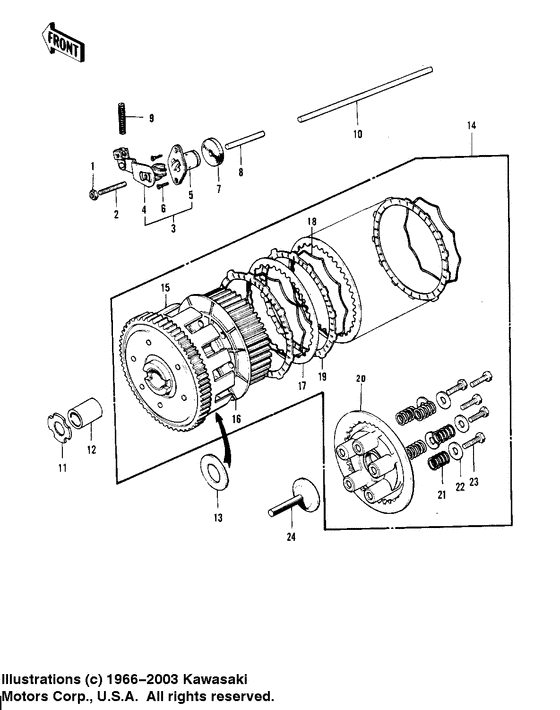

Clutch ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
1
|
1
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
2
|
2
291Z0625 SCREW SLOTTED |
291Z0625 |
US $24.95 |
||
|
3
|
3
13231-010
RELEASE ASSY,CLUTCH
Release assy,clutch; |
13231-010 |
— | ||
|
4
|
4
13102-017
INNER,CLUTCH RELEASE
Inner,clutch release; |
13102-017 |
— | ||
|
5
|
5
13118-008
OUTER,CLUTCH RELEASE
Outer,clutch release; |
13118-008 |
— | ||
|
6
|
6
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
6
|
6
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
7
|
7
92050-040 OIL SEAL TC7297 |
92050-040 |
US $17.87 |
||
|
8
|
8
13116-010
ROD CLUTCH PUSH SHORT
|
13116-010 |
— | ||
|
9
|
9
92081-096 SPRING-CLUTCH RELEASESpring-clutch release; |
92081-096 |
from US $3.11 |
||
|
10
|
10
13116-019 ROD-CLUTCH PUSH,LONGRod-clutch push,long; |
13116-019 |
US $11.05 |
||
|
11
|
11
92022-119
WASHER THRUST
|
92022-119 |
— | ||
|
12
|
12
92028-045
BUSH CLUTCH
|
92028-045 |
— | ||
|
13
|
13
92022-189 WASHER-PLAIN,20MMWasher-plain,20mm; |
92022-189 |
US $6.77 |
||
|
14
|
14
13081-1070 CLUTCH-ASSYWhn exh use 13081-1023, whn exh use 13081-1070 |
13081-1070 |
US $426.73 |
||
|
15
|
15
13095-1040 HOUSING-COMP-CLUTCHWhn exh use 13095-1040 |
13095-1040 |
US $322.72 |
||
|
16
|
16
13087-036 HUB,CLUTCHHub,clutch; |
13087-036 |
US $86.22 |
||
|
17
|
17
13089-003 PLATE CLUTCH STEEL |
13089-003 |
from US $8.40 |
||
|
18
|
18
13229-002 RING-CLUTCH STEEL |
13229-002 |
US $9.76 |
||
|
19
|
19
13088-1015 PLATE-FRICTION |
13088-1015 |
from US $15.71 |
||
|
20
|
20
13187-004 PLATE-CLUTCH SPRING |
13187-004 |
US $33.16 |
||
|
21
|
21
92081-095 SPRING-CLUTCH |
92081-095 |
US $11.83 |
||
|
22
|
22
92022-167
WASHER-PLAIN,5MM
Washer-plain,5mm; |
92022-167 |
— | ||
|
23
|
23
92003-078
BOLT,5X18
Bolt,5x18; |
92003-078 |
— | ||
|
24
|
24
13116-016
PUSHER-CLTCH SPRG PLT
|
13116-016 |
— | ||
