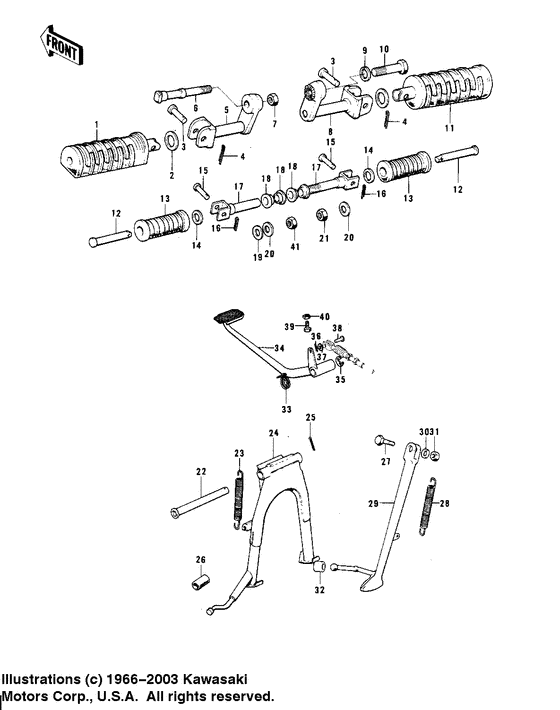

Footrests/stands/brake pedal ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34028-011
BAR-FOOTREST,L.H
Bar-footrest,l.h; |
34028-011 |
— | ||
|
2
|
2
92022-204
WASHER PL 22.5X36X2.3
|
92022-204 |
— | ||
|
3
|
3
92043-080 PIN-FOOTREST BAR FITPin-footrest bar fit; |
92043-080 |
from US $3.33 |
||
|
4
|
4
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
4
|
4
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
5
|
5
34003-040 HOLDER-FOTREST BAR LH |
34003-040 |
US $71.50 |
||
|
6
|
6
92003-076
BOLT-L.H FOOTREST FIT
|
92003-076 |
— | ||
|
7
|
7
315B1200
NUT-HEX-FINE
Nut-hex-fine,12mm; |
315B1200 |
— | ||
| replacement | |||||
|
7
|
7
315AA1200 NUT-HEX-FINENut-hex-fine,12mm; |
315AA1200 |
from US $1.09 |
||
|
8
|
8
34003-041 HOLDER-FOTREST BAR RH |
34003-041 |
US $54.20 |
||
|
9
|
9
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
9
|
9
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
10
|
10
92001-1068
BOLT,R.H.FOOTREST FIT
Bolt,r.h.footrest fit; |
92001-1068 |
— | ||
|
11
|
11
34028-012
BAR-FOOTREST,R.H
Bar-footrest,r.h; |
34028-012 |
— | ||
|
12
|
12
34028-009 BAR-RR FOOTREST (OPT)Bar-rr footrest (opt); |
34028-009 |
from US $21.84 |
||
|
13
|
13
92076-024 RUBBER,REAR FOOTRESTRubber,rear footrest; |
92076-024 |
from US $10.27 |
||
|
14
|
14
92022-199 WASHER-PLAIN (OPT)Washer-plain (opt); |
92022-199 |
from US $4.51 |
||
|
15
|
15
92043-1464 PIN |
92043-1464 |
from US $5.39 |
||
|
16
|
16
550D2012 PIN,COTTER,2.0X12Pin,cotter,2.0x12; |
550D2012 |
from US $0.38 |
||
| replacement | |||||
|
16
|
16
550AA2012 PIN,COTTER,2.0X12Pin,cotter,2.0x12; |
550AA2012 |
from US $0.94 |
||
|
17
|
17
34029-011 BRACKET,REAR FOOTRESTBracket,rear footrest; |
34029-011 |
US $27.02 |
||
|
18
|
18
92092-010 BUSHING,MUFFLER FITTBushing,muffler fitt; |
92092-010 |
from US $10.61 |
||
|
19
|
19
92022-196
WASHER-HANDLEBAR FIT
|
92022-196 |
— | ||
|
20
|
20
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
20
|
20
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
21
|
21
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
21
|
21
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
21
|
21
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
22
|
22
34019-011
SHAFT MAIN STAND
|
34019-011 |
— | ||
|
23
|
23
34023-010
SPRING-MAIN STAND
|
34023-010 |
— | ||
|
24
|
24
34011-035
STAND-MAIN
|
34011-035 |
— | ||
|
25
|
25
550D3025 PIN-COTTER,3.0X25Pin cotter 3.0x25; |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
25
|
25
550AA3025 PIN-COTTER,3.0X25Pin cotter 3.0x25; |
550AA3025 |
from US $0.95 |
||
|
26
|
26
92075-115
DAMPER RUBB-MAIN STND
|
92075-115 |
— | ||
|
27
|
27
92001-1252
BOLT,HEX HEAD 10X35
Bolt,hex head 10x35; S3, s3-a |
92001-1252 |
— | ||
|
28
|
28
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
29
|
29
34024-051
STAND-SIDE
S3, s3-a |
34024-051 |
— | ||
|
30
|
30
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
30
|
30
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
31
|
31
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
31
|
31
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
32
|
32
92075-031 DAMPER,SIDE STAND |
92075-031 |
US $10.13 |
||
| replacement | |||||
|
32
|
32
92160-1655 DAMPER,SIDE STAND |
92160-1655 |
from US $6.18 |
||
|
33
|
33
43005-033
SPRING,BRAKE PEDAL
Spring,brake pedal; |
43005-033 |
— | ||
|
34
|
34
43001-060
PEDAL,BRAKE
Pedal,brake; |
43001-060 |
— | ||
|
35
|
35
482K0200
CIRCLIP 12MM
|
482K0200 |
— | ||
|
36
|
36
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
36
|
36
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
37
|
37
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
37
|
37
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
38
|
38
92043-034
PIN R BRK CABLE JOINT
|
92043-034 |
— | ||
|
39
|
39
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
39
|
39
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
40
|
40
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
40
|
40
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
41
|
41
92019-021
Nut,lock,10m/m
Nut,lock,10mm; S3, s3-a |
92019-021 |
— | ||
| replacements | |||||
|
41
|
41
92210-1184 NUTNut,lock,10mm; S3, s3-a |
92210-1184 |
from US $4.09 |
||
|
41
|
41
92015-1962 NUTNut,lock,10mm; S3, s3-a |
92015-1962 |
from US $3.33 |
||
