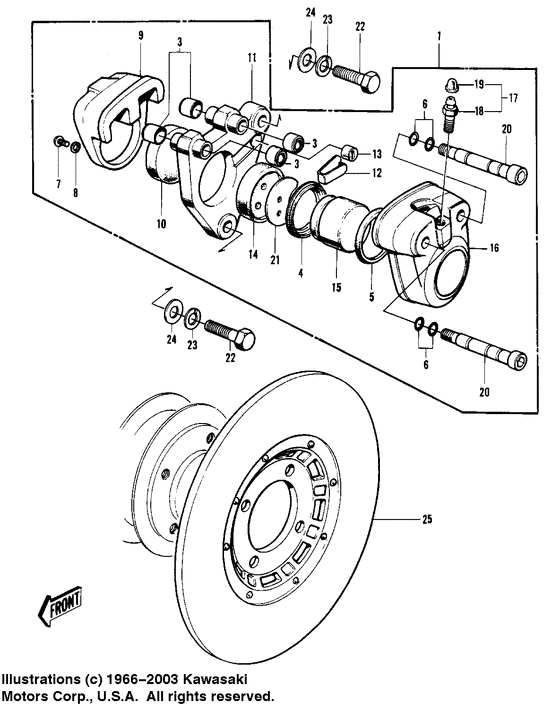

Front brake ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43041-003 CALIPER ASSYS3, s3-a |
43041-003 |
US $474.25 |
||
|
2
|
2
43073-003 REPAIR SET,CALLIPERRepair set,calliper; Incl. ref. 3-6 |
43073-003 |
US $25.74 |
||
|
3
|
3
43052-002 DUST SEAL-SHAFT |
43052-002 |
from US $5.28 |
||
|
4
|
4
43054-002 DUST SEAL-PISTON |
43054-002 |
from US $13.54 |
||
|
5
|
5
43049-001
PACKING,PISTON SEAL
Ring-piston; |
43049-001 |
— | ||
| replacement | |||||
|
5
|
5
43049-1097 PACKING,PISTON SEALRing-piston; |
43049-1097 |
from US $8.50 |
||
|
6
|
6
43053-001 0 RING,SHAFT"0" ring,shaft; |
43053-001 |
from US $5.76 |
||
|
7
|
7
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
7
|
7
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
7
|
7
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
8
|
8
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
8
|
8
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
9
|
9
43043-002 CALIPER B |
43043-002 |
US $101.81 |
||
|
10
|
10
43051-001
PAD B
|
43051-001 |
— | ||
|
11
|
11
43044-003 HOLDER-CALIPER |
43044-003 |
US $124 |
||
|
12
|
12
43046-001
STOPPER-PAD A
|
43046-001 |
— | ||
|
13
|
13
43047-001
BUSHING-RUBBER
|
43047-001 |
— | ||
|
14
|
14
43082-001
PAD A
|
43082-001 |
— | ||
|
15
|
15
43048-001
PISTON-CALIPER
|
43048-001 |
— | ||
|
16
|
16
43042-003 CALIPER A |
43042-003 |
US $187.29 |
||
|
17
|
17
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
18
|
18
43056-003
BLEEDER SET
Breeder; |
43056-003 |
— | ||
| replacement | |||||
|
18
|
18
43085-001 BLEEDER SETBreeder; |
43085-001 |
from US $14.69 |
||
|
19
|
19
43057-003 CAP,BREEDERCap,breeder; |
43057-003 |
from US $3.01 |
||
|
20
|
20
43045-002 SHAFT |
43045-002 |
US $38.39 |
||
|
21
|
21
43076-001 SHIM |
43076-001 |
US $9.36 |
||
|
22
|
22
92007-032 BOLT |
92007-032 |
from US $5.28 |
||
|
23
|
23
461F1000 WASHER SPRING 10MMWasher,spring,10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
23
|
23
461DA1000 WASHER-SPRINGWasher,spring,10mm; |
461DA1000 |
from US $0.90 |
||
|
24
|
24
410B1000
W-PLAIN-S
Washer,plain small,10mm; |
410B1000 |
— | ||
| replacement | |||||
|
24
|
24
410AA1000 W-PLAIN-SWasher,plain small,10mm; |
410AA1000 |
from US $0.81 |
||
|
25
|
25
41080-006 DISC PLATE,FRONT BRAKDisc plate,front brak; |
41080-006 |
US $570.22 |
||
