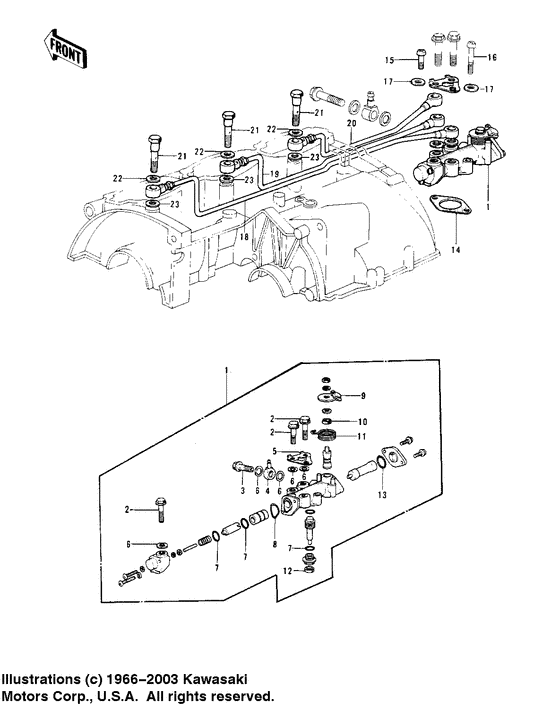

Oil pump ('74-'75 s3/s3-a) Diagram Kawasaki Model "S" S3 Mach II
- Year
- 1975
- Model code
- S3-A
- Sales region
- USA
- Engine Capacity
- 400
- Model
- S3 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16082-1009
PUMP ASSY,OIL
Pump assy,oil; |
16082-1009 |
— | ||
|
2
|
2
92060-008 BOLT BANJOBolt banjo; |
92060-008 |
from US $9.01 |
||
|
3
|
3
92060-009
BOLT BANJO - N.L.A.
|
92060-009 |
— | ||
|
4
|
4
92061-015
CONNECTOR BANJO
|
92061-015 |
— | ||
|
5
|
5
92024-058
WASHER,OIL PUMP LOCK
Washer,oil pump lock; |
92024-058 |
— | ||
|
6
|
6
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.53 |
||
|
7
|
7
16090-002 0 RING,OIL PUMP SHT"0" ring,oil pump sht; |
16090-002 |
from US $4.35 |
||
|
8
|
8
16088-002 0 RING,UPPER CAP"0" ring,upper cap; |
16088-002 |
from US $6.06 |
||
|
9
|
9
16096-011
LETER,OIL PUMP CABLE
Leter,oil pump cable; |
16096-011 |
— | ||
|
10
|
10
92049-1294 SEAL-OIL,CAMSHAFT,"X"Seal-oil,camshaft,"x"; |
92049-1294 |
from US $7.34 |
||
|
11
|
11
16093-002 SPRING OIL PUMP LEVER |
16093-002 |
US $3.15 |
||
|
12
|
12
16091-001 OIL SEAL OIL PUMP SHTOil seal oil pump sht; |
16091-001 |
from US $4.35 |
||
|
13
|
13
16090-003
0 RING,LOWER CAP
"0" ring,lower cap; |
16090-003 |
— | ||
|
14
|
14
11060-1160 GASKET,OIL PUMPGasket,oil pump; |
11060-1160 |
from US $3.31 |
||
|
15
|
15
220B0514
SCREW-PAN-CROS
|
220B0514 |
— | ||
| replacement | |||||
|
15
|
15
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
16
|
16
220B0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220B0528 |
US $0.63 |
||
| replacement | |||||
|
16
|
16
220AA0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220AA0528 |
from US $0.62 |
||
|
17
|
17
92022-037 WASHER OIL PUMPWasher oil pump; |
92022-037 |
from US $2.53 |
||
|
18
|
18
16134-012
PIPE-OIL,L.H
Pipe-oil,l.h; |
16134-012 |
— | ||
|
19
|
19
16134-013
PIPE-OIL,CENTER
Pipe-oil,center; |
16134-013 |
— | ||
|
20
|
20
16134-014
PIPE-OIL,R.H
Pipe-oil,r.h; |
16134-014 |
— | ||
|
21
|
21
92060-010-79
BOLT-BANJO,CR
Bolt-banjo,cr; |
92060-010-79 |
— | ||
|
22
|
22
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
23
|
23
92065-023 GASKET, CHECK VALVEGasket check valve; |
92065-023 |
from US $3.17 |
||
