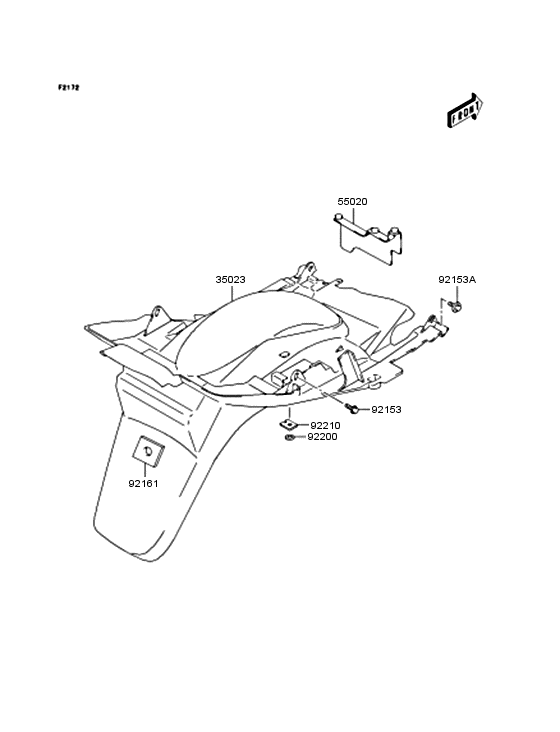

Rear fender Diagram Kawasaki SC250 Epsilon
- Year
- 2002
- Colour
- Candy Grand Blue (513)
- Model code
- SC250-A1
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- CJ42B 100001 -
- Engine
- J429 100001 -
- Model
- SC250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35023
|
35023
35023-S002-510 フェンダー(リヤ)，rr，c.grayフエンダ(リヤ)，RR，グレ- |
35023-S002-510 |
US $116.99 |
||
|
55020
|
55020
55020-S003 ガード(リヤフェンダ)ガ-ド，リヤフエンダ |
55020-S003 |
US $10.77 |
||
|
92153
|
92153
92153-S046 BOLT,6X16ボルト，6X16 |
92153-S046 |
from US $1.90 |
||
|
92153A
|
92153A
92153-S050 BOLT,6X16ボルト，6X16 |
92153-S050 |
from US $1.74 |
||
|
92161
|
92161
92161-S051 ダンパ，リアフェンダーダンパ，リヤフエンダ |
92161-S051 |
US $2.22 |
||
|
92200
|
92200
92200-S003 WASHERワツシヤ |
92200-S003 |
from US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S286 WASHERワツシヤ |
92200-S286 |
from US $0.94 |
||
|
92210
|
92210
92210-S043 NUT,FRONT FENDERナツト，フロントフエンダ |
92210-S043 |
from US $2.53 |
||
