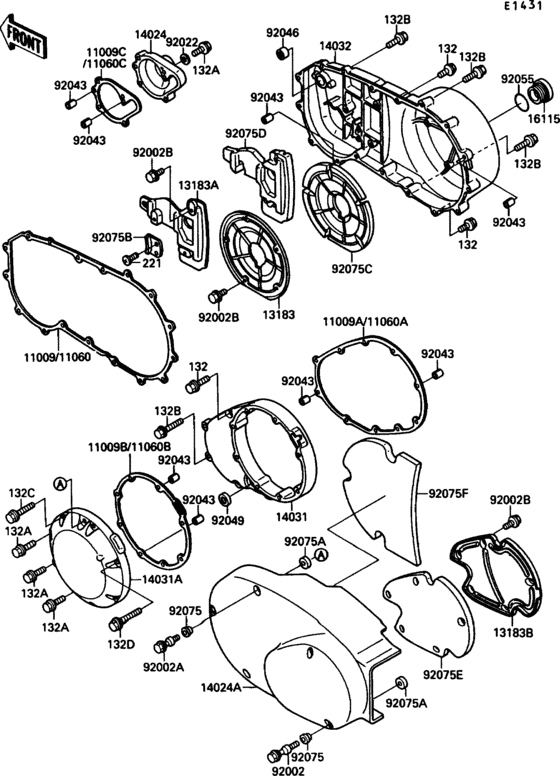

Engine cover Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1987
- Model code
- VN1500-A1
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAA1 HA000021 - HA001000
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92002-1612 BOLT |
92002-1612 |
from US $3.01 |
||
|
132A
|
132A
132E0630 BOLT-FLANGED-SMALL |
132E0630 |
from US $1.90 |
||
|
132B
|
132B
132E0635 BOLT-FLANGED-SMALL |
132E0635 |
from US $1.58 |
||
|
132C
|
132C
132E0655 BOLT-FLANGED-SMALL |
132E0655 |
from US $1.40 |
||
|
132D
|
132D
132E0665 BOLT-FLANGED-SMALL |
132E0665 |
from US $1.90 |
||
|
221
|
221
221AA0612 SCREW-CSK-CROSS,6X12 |
221AA0612 |
from US $0.95 |
||
|
11009
|
11009
11060-1121 GASKET-CLUTCH COVER |
11060-1121 |
from US $28.57 |
||
|
11009A
|
11009A
11060-1122 GASKET-GENERATOR |
11060-1122 |
from US $19.17 |
||
|
11009B
|
11009B
11060-1123 GASKET-GENERATOR OUTR |
11060-1123 |
from US $10.27 |
||
|
11009C
|
11009C
11061-1172 GASKET,WATER PUMP COVER |
11061-1172 |
US $10.91 |
||
| replacement | |||||
|
11009C
|
11009C
11061-1527 GASKET,WATER PUMP COVER |
11061-1527 |
from US $10.30 |
||
|
13183
|
13183
13183-1169 PLATE |
13183-1169 |
US $13.37 |
||
|
13183A
|
13183A
13183-1170 PLATE |
13183-1170 |
US $11.03 |
||
|
13183B
|
13183B
13183-1171 PLATE,DAMPER |
13183-1171 |
US $16.06 |
||
|
14024
|
14024
14024-1402
COVER,WATER PUMP
|
14024-1402 |
— | ||
|
14024A
|
14024A
14024-1403
COVER,LH
|
14024-1403 |
— | ||
|
14031
|
14031
14031-1205 Cover-generator |
14031-1205 |
US $129.06 |
||
|
14031A
|
14031A
14031-1206 COVER-GENERATOR,OUTER |
14031-1206 |
US $90.45 |
||
|
14032
|
14032
14032-1233 COVER-CLUTCH |
14032-1233 |
US $292.41 |
||
|
16115
|
16115
16115-1056 CAP-OIL FILLER |
16115-1056 |
from US $20.91 |
||
|
92002
|
92002
92002-1814 BOLT |
92002-1814 |
from US $4.82 |
||
|
92002A
|
92002A
92002-1900 BOLT |
92002-1900 |
US $9.27 |
||
|
92002B
|
92002B
92002-1944 BOLT,6X8 |
92002-1944 |
from US $2.85 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92046
|
92046
92046-1163 BEARING-NEEDLE,HK1212 |
92046-1163 |
from US $15.05 |
||
|
92049
|
92049
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-049 O-RING,31MM |
92055-049 |
from US $3.37 |
||
|
92075
|
92075
92075-1855 DAMPER |
92075-1855 |
from US $5.39 |
||
|
92075A
|
92075A
92075-1856 DAMPER |
92075-1856 |
from US $6.34 |
||
|
92075B
|
92075B
92075-1905 DAMPER |
92075-1905 |
from US $7.92 |
||
|
92075C
|
92075C
92075-1975 DAMPER,CLUTCH COVER,R |
92075-1975 |
US $76.63 |
||
|
92075D
|
92075D
92075-1976 DAMPER,CLUTCH COVER,F |
92075-1976 |
US $42.52 |
||
|
92075E
|
92075E
92075-1977 DAMPER,LH COVER,RR |
92075-1977 |
US $49.07 |
||
|
92075F
|
92075F
92075-1978 DAMPER,LH COVER,FR |
92075-1978 |
US $52.49 |
||
