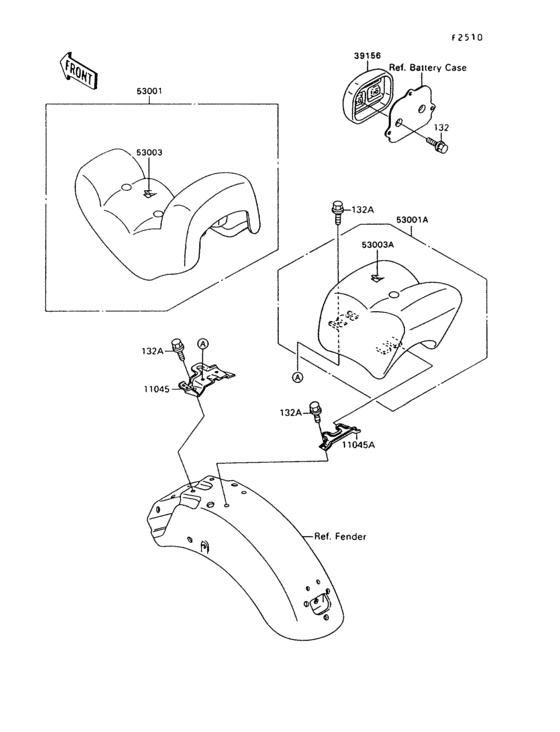

Seat Diagram Kawasaki VN1500 VN-15
- Year
- 1998
- Colour
- Metallic Dark Bronze / Candy Wine Red (A1)
- Model code
- VN1500-A12
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0614 BOLT-FLANGED-SMALL,6X |
132E0614 |
from US $1.11 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
11045
|
11045
11045-1449 BRACKET,REAR SEAT,FR |
11045-1449 |
US $16.06 |
||
|
11045A
|
11045A
11045-1450 BRACKET,REAR SEAT,RR |
11045-1450 |
US $16.06 |
||
|
39156
|
39156
39156-1070-MA PAD,BACK REST,BLACK |
39156-1070-MA |
US $213.55 |
||
|
53001
|
53001
53001-1499-MA SEAT-ASSY,FR,BLACK |
53001-1499-MA |
US $597.44 |
||
|
53001A
|
53001A
53001-1500-MA SEAT-ASSY,RR,BLACK |
53001-1500-MA |
US $399.55 |
||
|
53003
|
53003
53003-1189-MA LEATHER,FRONT SEAT,BL |
53003-1189-MA |
US $249.12 |
||
|
53003A
|
53003A
53003-1190-MA LEATHER,REAR SEAT,BLA |
53003-1190-MA |
US $169.33 |
||
