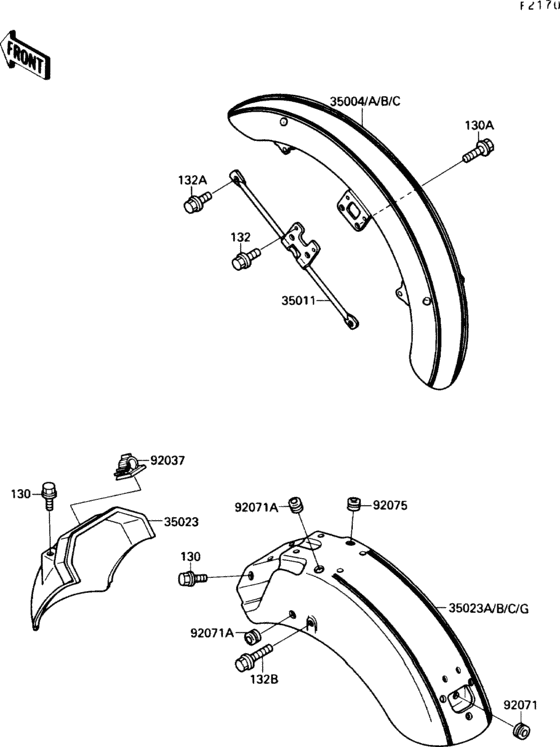

Fender Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1988
- Model code
- VN1500-A2
- Sales region
- USA
- Engine Capacity
- 1500
- Frame
- JKBVNAA1 JA001001 - JA003000
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130AA0814 BOLT-FLANGED |
130AA0814 |
from US $0.40 |
||
|
132
|
132
132E0510 BOLT-FLANGED-SMALL,5X |
132E0510 |
US $2.86 |
||
|
132A
|
132A
132E0610 BOLT-FLANGED-SMALL |
132E0610 |
from US $1.11 |
||
|
132B
|
132B
132E0840 BOLT-FLANGED-SMALL |
132E0840 |
from US $1.58 |
||
|
35004
|
35004
35004-5073-CA FENDER-FRONT,RED/RED |
35004-5073-CA |
US $489.91 |
||
|
35004A
|
35004A
35004-5085-T4 FENDER-FRONT,EBONY/GR |
35004-5085-T4 |
US $522.76 |
||
|
35011
|
35011
35011-1333 STAY,FRONT FENDER |
35011-1333 |
US $46.17 |
||
|
35023
|
35023
35023-1189 FENDER-REAR,FR |
35023-1189 |
US $56.16 |
||
|
35023A
|
35023A
35023-5051-CA FENDER-REAR,RR,RED/RE |
35023-5051-CA |
US $464.04 |
||
|
92037
|
92037
92037-1816 CLAMP |
92037-1816 |
from US $5.07 |
||
|
92071
|
92071
92071-099 GROMMET,HARNESS |
92071-099 |
from US $3.01 |
||
|
92071A
|
92071A
92071-1148 GROMMET |
92071-1148 |
US $3.37 |
||
|
92075
|
92075
92075-294 DAMPER RUBBER,HORN MO |
92075-294 |
from US $2.85 |
