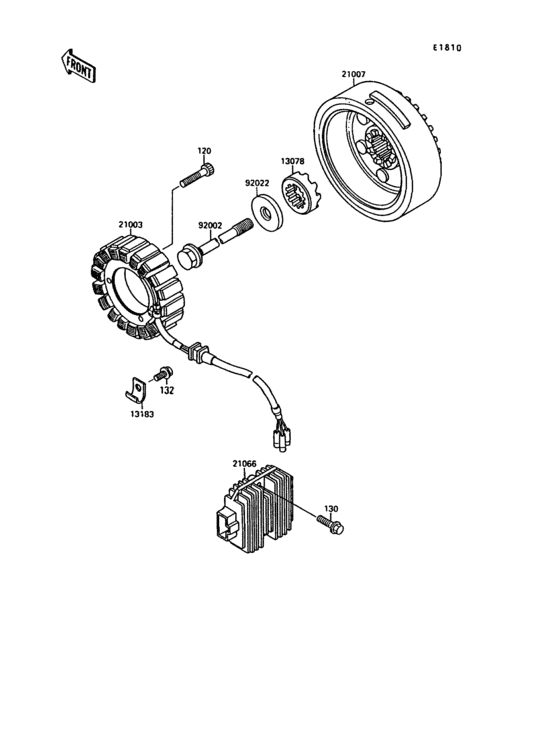

Generator Diagram Kawasaki VN1500 VN-15
- Year
- 1992
- Colour
- Luminous Crimson Red / Candy Wine Red (CA)
- Model code
- VN1500-A6
- Sales region
- Switzerland
- Engine Capacity
- 1500
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0635
BOLT-SOCKET,6X35
|
120P0635 |
— | ||
| replacement | |||||
|
120
|
120
120CA0635 BOLT-SOCKET,6X35 |
120CA0635 |
from US $0.95 |
||
|
130
|
130
130B0620 BOLT-FLANGED,6X20 |
130B0620 |
US $1.11 |
||
| replacements | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $1.11 |
||
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
132
|
132
132E0610 BOLT-FLANGED-SMALL |
132E0610 |
from US $1.11 |
||
|
13078
|
13078
13078-1056 RATCHET |
13078-1056 |
from US $43.83 |
||
|
13183
|
13183
13183-1072 PLATE |
13183-1072 |
US $2.93 |
||
|
21003
|
21003
21003-1164 STATOR |
21003-1164 |
US $658.15 |
||
| replacement | |||||
|
21003
|
21003
21003-1385 STATOR |
21003-1385 |
from US $556.14 |
||
|
21007
|
21007
21007-1154 ROTOR |
21007-1154 |
US $488.39 |
||
|
21066
|
21066
21066-1055
REGULATOR-VOLTAGE
|
21066-1055 |
— | ||
| replacement | |||||
|
21066
|
21066
21066-1101 REGULATOR-VOLTAGE |
21066-1101 |
from US $168.43 |
||
|
92002
|
92002
92002-1901 BOLT,GENERATOR,12X112 |
92002-1901 |
from US $26.10 |
||
|
92022
|
92022
92022-1904 WASHER,GENERATOR |
92022-1904 |
from US $8.71 |
||
