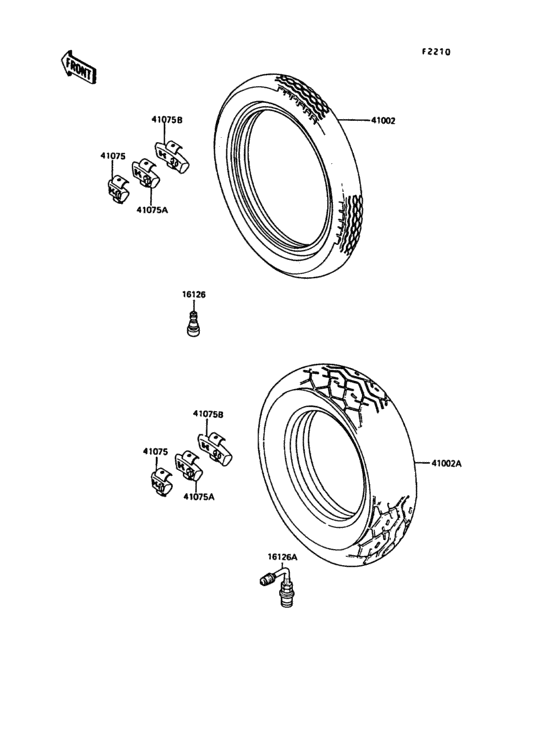

Tire Diagram Kawasaki VN1500 VN-15
- Year
- 1992
- Colour
- Luminous Crimson Red / Candy Wine Red (CA)
- Model code
- VN1500-A6
- Sales region
- Switzerland
- Engine Capacity
- 1500
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-1140 VALVE,TIRE |
16126-1140 |
from US $21.07 |
||
|
16126A
|
16126A
16126-1191 VALVE,TIRE |
16126-1191 |
from US $25.28 |
||
|
41002
|
41002
41002-1693
Tire,fr,100/90-19 57h
|
41002-1693 |
— | ||
|
41002A
|
41002A
41002-1736
Tire,rr,150/90-15 m/c
|
41002-1736 |
— | ||
|
41075
|
41075
41075-1014 BALANCER-WHEEL,10G,SI |
41075-1014 |
from US $8.84 |
||
| replacement | |||||
|
41075
|
41075
41075-0014 BALANCER-WHEEL,10G,SI |
41075-0014 |
from US $6.81 |
||
|
41075A
|
41075A
41075-1015 BALANCER-WHEEL,20G,SI |
41075-1015 |
from US $8.84 |
||
| replacement | |||||
|
41075A
|
41075A
41075-0015 BALANCER-WHEEL,20G,SI |
41075-0015 |
from US $6.81 |
||
|
41075B
|
41075B
41075-1016 BALANCER-WHEEL,30G,SI |
41075-1016 |
from US $8.84 |
||
| replacement | |||||
|
41075B
|
41075B
41075-0016 BALANCER-WHEEL,30G,SI |
41075-0016 |
from US $6.81 |
||
