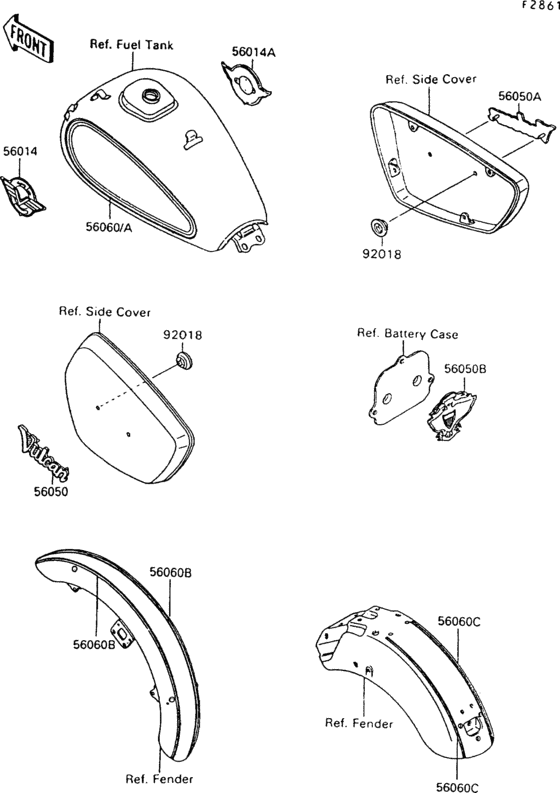

Decals(blue/gray) Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1992
- Model code
- VN1500-A6
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKAVNAA1 NA009001 - NA013000
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-1213
EMBLEM,FUEL TANK,LH,F
|
56014-1213 |
— | ||
|
56014A
|
56014A
56014-1214
EMBLEM,FUEL TANK,RH,F
|
56014-1214 |
— | ||
|
56050
|
56050
56050-1006
MARK,SIDE COVER,LH,FO
|
56050-1006 |
— | ||
|
56050A
|
56050A
56050-1007
MARK,SIDE COVER,RH,FO
|
56050-1007 |
— | ||
|
56050B
|
56050B
56050-1009
MARK,BACK REST COVER,
|
56050-1009 |
— | ||
|
56060
|
56060
56060-1016
Pattern,fuel tank,lh
|
56060-1016 |
— | ||
|
56060A
|
56060A
56060-1017
Pattern,fuel tank,rh
|
56060-1017 |
— | ||
|
56060C
|
56060C
56060-1019
PATTERN,REAR FENDER,L
|
56060-1019 |
— | ||
|
92018
|
92018
92018-005 NUT,LOCK,3MM |
92018-005 |
from US $2.85 |
