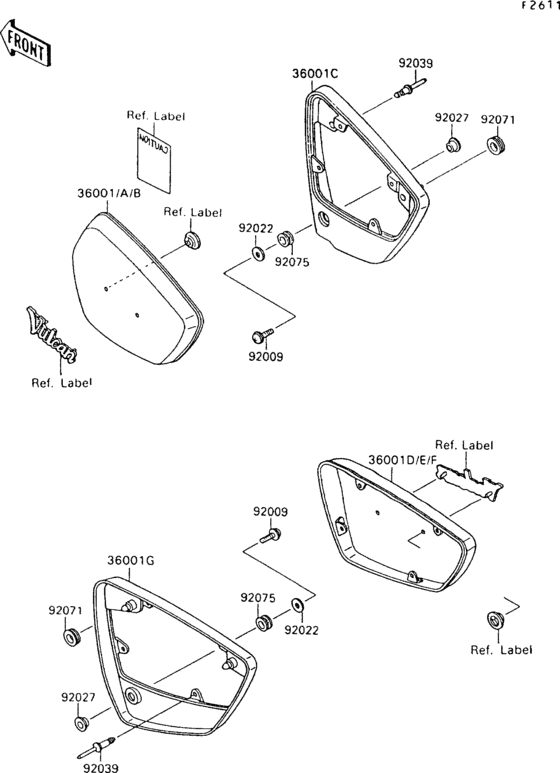

Side covers Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1994
- Model code
- VN1500-A8
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKAVNAA1 RA020001 - RA026000
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36001B
|
36001B
36001-1355-SM COVER-SIDE,LH,P.T.GRE |
36001-1355-SM |
US $183.62 |
||
|
36001C
|
36001C
36001-1356-21 COVER-SIDE,BASE,LH,F.BLACK |
36001-1356-21 |
US $62.60 |
||
|
36001F
|
36001F
36001-1357-SM COVER-SIDE,RH,P.T.GRE |
36001-1357-SM |
US $183.62 |
||
|
36001G
|
36001G
36001-1358-21
COVER-SIDE,BASE,RH,F.
|
36001-1358-21 |
— | ||
|
92009
|
92009
92009-3805 SCREW,6X18 |
92009-3805 |
from US $2.69 |
||
|
92022
|
92022
92022-1619 WASHER,6.5X20X1.6 |
92022-1619 |
from US $3.33 |
||
|
92027
|
92027
92027-1795 COLLAR |
92027-1795 |
from US $3.96 |
||
|
92039
|
92039
92039-1232 RIVET |
92039-1232 |
from US $1.24 |
||
|
92071
|
92071
92071-1164 GROMMET |
92071-1164 |
US $4.23 |
||
|
92075
|
92075
92075-1634 DAMPER |
92075-1634 |
from US $3.73 |
