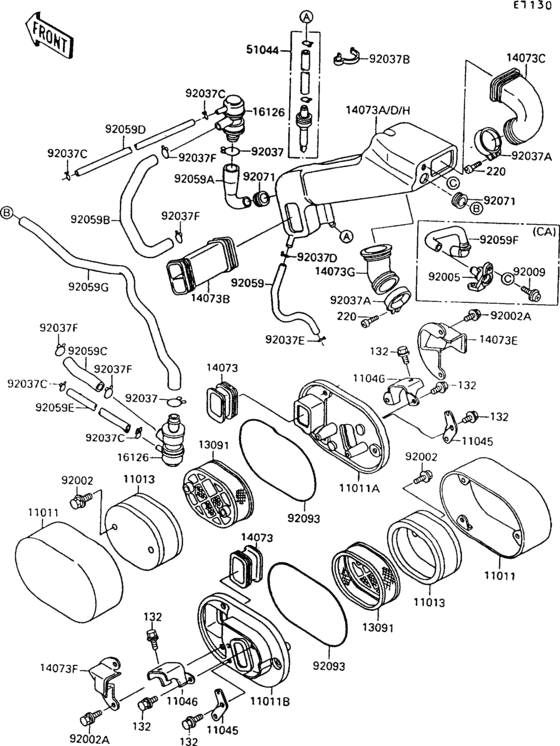

Air cleaner(1/2) Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1995
- Model code
- VN1500-A9
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKAVNAA1 SA026001 - 999999
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6X |
132BB0610 |
from US $1.11 |
||
|
220
|
220
220AB0430 SCREW-PAN-CROS |
220AB0430 |
from US $0.94 |
||
|
11011
|
11011
11011-1248 CASE-AIR FILTER,OUTSI |
11011-1248 |
from US $156.21 |
||
|
11011A
|
11011A
11011-1289
CASE-AIR FILTER,LH,IN
|
11011-1289 |
— | ||
|
11011B
|
11011B
11011-1290
CASE-AIR FILTER,RH,IN
|
11011-1290 |
— | ||
|
11013
|
11013
11013-1122 Element-air filter |
11013-1122 |
from US $32.32 |
||
|
11045
|
11045
11045-1434
BRACKET,AIR FILTER,LW
|
11045-1434 |
— | ||
|
11046
|
11046
11046-1035
BRACKET,AIR FILTER,UP
|
11046-1035 |
— | ||
|
13091
|
13091
13091-1345 HOLDER,ELEMENT |
13091-1345 |
US $63.75 |
||
|
14073
|
14073
14073-1296
DUCT,INLET
|
14073-1296 |
— | ||
|
14073B
|
14073B
14073-1298
DUCT,AIR FILTER
|
14073-1298 |
— | ||
|
14073C
|
14073C
14073-1299
DUCT,FR,CARBURETOR
|
14073-1299 |
— | ||
|
14073E
|
14073E
14073-1316
DUCT,LH
|
14073-1316 |
— | ||
|
14073F
|
14073F
14073-1317
DUCT,RH
|
14073-1317 |
— | ||
|
14073G
|
14073G
14073-1326
DUCT,RR,CARBURETOR
|
14073-1326 |
— | ||
|
14073H
|
14073H
14073-1357
Duct,surge tank
|
14073-1357 |
— | ||
|
51044
|
51044
51044-1089
TUBE-ASSY
|
51044-1089 |
— | ||
|
92002
|
92002
92002-1137 BOLT,6X25 |
92002-1137 |
from US $3.17 |
||
|
92002A
|
92002A
92002-1242 BOLT |
92002-1242 |
from US $2.85 |
||
|
92037A
|
92037A
92037-1112 CLAMP,BOOT FITTING |
92037-1112 |
from US $11.09 |
||
|
92037B
|
92037B
92037-1552 CLAMP |
92037-1552 |
from US $7.13 |
||
|
92037D
|
92037D
92037-1862 CLAMP,14MM |
92037-1862 |
from US $3.57 |
||
|
92037E
|
92037E
92037-192 CLAMP,BREATHER HOSE |
92037-192 |
from US $4.12 |
||
|
92059
|
92059
92059-1777
TUBE,BREATHER
|
92059-1777 |
— | ||
|
92093
|
92093
92093-1236 SEAL,AIR FILTER |
92093-1236 |
from US $6.54 |
