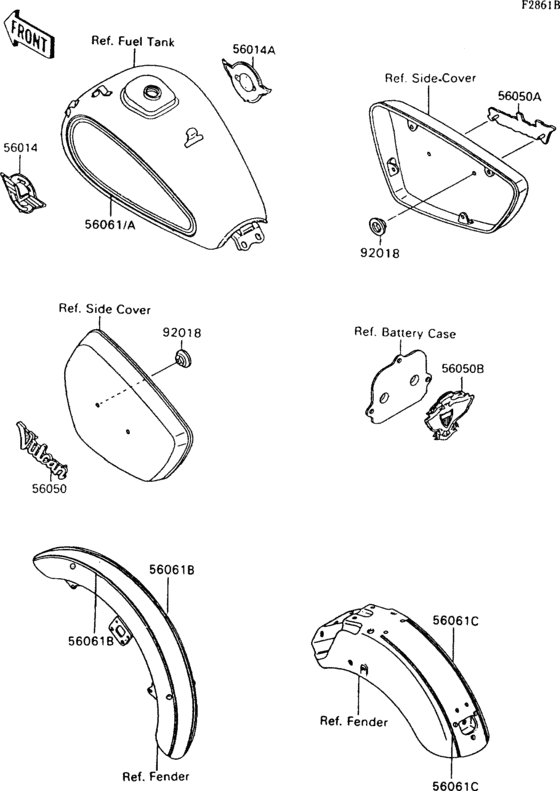

Decals(red/gray) Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1995
- Model code
- VN1500-A9
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKAVNAA1 SA026001 - 999999
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-1213
EMBLEM,FUEL TANK,LH,F
|
56014-1213 |
— | ||
|
56014A
|
56014A
56014-1214
EMBLEM,FUEL TANK,RH,F
|
56014-1214 |
— | ||
|
56050
|
56050
56050-1006
MARK,SIDE COVER,LH,FO
|
56050-1006 |
— | ||
|
56050A
|
56050A
56050-1007
MARK,SIDE COVER,RH,FO
|
56050-1007 |
— | ||
|
56050B
|
56050B
56050-1009
MARK,BACK REST COVER,
|
56050-1009 |
— | ||
|
56061
|
56061
56061-1102 Pattern,fuel tank,lh |
56061-1102 |
US $71.42 |
||
|
56061A
|
56061A
56061-1103 Pattern,fuel tank,rh |
56061-1103 |
US $71.42 |
||
|
56061B
|
56061B
56061-1104 PATTERN,FR FENDER |
56061-1104 |
US $34.63 |
||
|
56061C
|
56061C
56061-1105 PATTERN,RR FENDER |
56061-1105 |
US $30.22 |
||
|
92018
|
92018
92018-005 NUT,LOCK,3MM |
92018-005 |
from US $2.85 |
