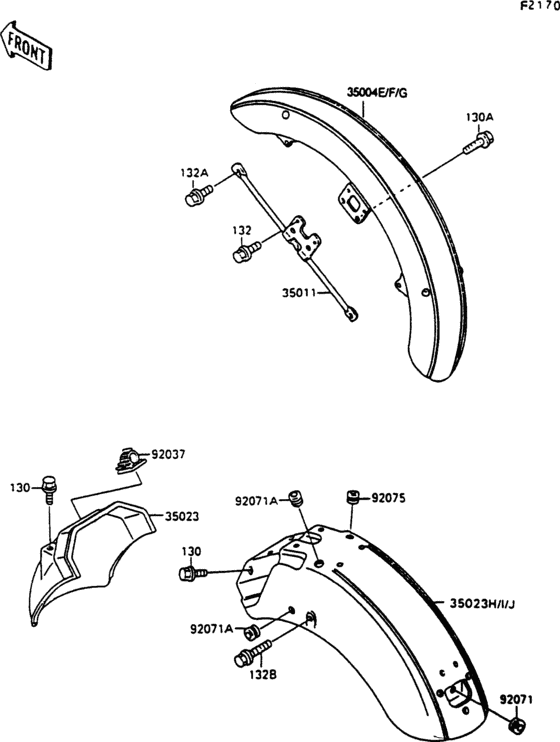

Fenders Diagram Kawasaki VN1500 Vulcan 88
- Year
- 1995
- Model code
- VN1500-A9
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKAVNAA1 SA026001 - 999999
- Model
- Vulcan 1500/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130AA0814 BOLT-FLANGED |
130AA0814 |
from US $0.40 |
||
|
132
|
132
132E0510 BOLT-FLANGED-SMALL,5X |
132E0510 |
US $2.86 |
||
|
132A
|
132A
132E0610 BOLT-FLANGED-SMALL |
132E0610 |
from US $1.11 |
||
|
132B
|
132B
132E0840 BOLT-FLANGED-SMALL |
132E0840 |
from US $1.58 |
||
|
35004G
|
35004G
35004-1201-JG1 FENDER-FRONT,RED/GRAY |
35004-1201-JG1 |
US $353.39 |
||
|
35011
|
35011
35011-1333 STAY,FRONT FENDER |
35011-1333 |
US $46.17 |
||
|
35023
|
35023
35023-1189 FENDER-REAR,FR |
35023-1189 |
US $56.16 |
||
|
35023J
|
35023J
35023-5071-JG FENDER-REAR,RR,RED/GR |
35023-5071-JG |
US $581.26 |
||
|
92037
|
92037
92037-1816 CLAMP |
92037-1816 |
from US $5.07 |
||
|
92071
|
92071
92071-099 GROMMET,HARNESS |
92071-099 |
from US $3.01 |
||
|
92071A
|
92071A
92071-1148 GROMMET |
92071-1148 |
US $3.37 |
||
|
92075
|
92075
92075-294 DAMPER RUBBER,HORN MO |
92075-294 |
from US $2.85 |
