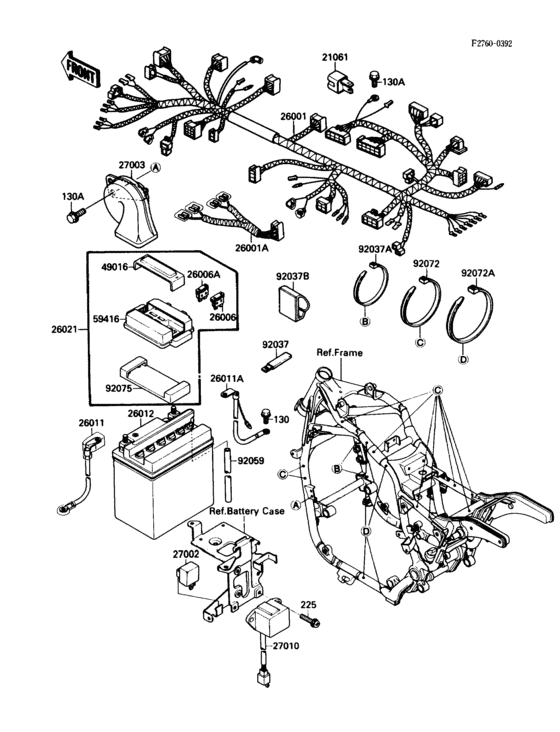

Chassis electrical equipment Diagram Kawasaki VN1500 Vulcan 88 SE
- Year
- 1989
- Colour
- Metallic Nocturne Blue (C6)
- Model code
- VN1500-B3
- Sales region
- Canada
- Engine Capacity
- 1500
- Model
- Vulcan 88 SE/ VN-15 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
|
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130C0610
BOLT-FLANGED
|
130C0610 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130A
|
130A
130AB0610 BOLT-FLANGED |
130AB0610 |
from US $1.11 |
||
|
225
|
225
225B0620
SCREW-PAN-WSP-CROS
|
225B0620 |
— | ||
| replacement | |||||
|
225
|
225
225AA0620 SCREW-PAN-WSP-CROS |
225AA0620 |
from US $1.24 |
||
|
21061
|
21061
21061-1003 RECTIFIER |
21061-1003 |
from US $23.94 |
||
|
26001
|
26001
26001-1857 HARNESS,MAIN |
26001-1857 |
US $310.32 |
||
| replacement | |||||
|
26001
|
26001
26001-1831
HARNESS,MAIN
|
26001-1831 |
— | ||
|
26001A
|
26001A
26001-1862
HARNESS,IGNITION
|
26001-1862 |
— | ||
|
26006
|
26006
26006-1006 FUSE,BLADE,30A,GREEN |
26006-1006 |
from US $2.82 |
||
|
26006A
|
26006A
26006-1007 FUSE,BLADE,10A,RED |
26006-1007 |
from US $3.33 |
||
|
26011
|
26011
26011-1391
WIRE-LEAD,BATTERY(+)
|
26011-1391 |
— | ||
|
26011A
|
26011A
26011-1392
WIRE-LEAD,BATTERY(-)
|
26011-1392 |
— | ||
|
26012
|
26012
26012-1187
Battery,12v 20ah,y50-
|
26012-1187 |
— | ||
| replacement | |||||
|
26012
|
26012
26012-1012
YUA BAT Y50-N18L-A
|
26012-1012 |
— | ||
|
26021
|
26021
26021-1068
JUNCTION BOX
|
26021-1068 |
— | ||
|
27002
|
27002
27002-1053 RELAY-ASSY,TURN SIGNAL |
27002-1053 |
from US $47.72 |
||
|
27003
|
27003
27003-1264
HORN,LOW TONE
|
27003-1264 |
— | ||
|
27010
|
27010
27010-1069
SWITCH,RESERV LIGHTIN
|
27010-1069 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1066 SWITCH,RESERV LIGHTIN |
27010-1066 |
from US $142.46 |
||
|
49016
|
49016
49016-1125
COVER-SEAL,FUSE
|
49016-1125 |
— | ||
|
59416
|
59416
59416-1065
JUNCTION BOX
|
59416-1065 |
— | ||
| replacement | |||||
|
59416
|
59416
26021-1068
JUNCTION BOX
|
26021-1068 |
— | ||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1817
CLAMP
|
92037-1817 |
— | ||
|
92037B
|
92037B
92037-1954
CLAMP,WIRING HARNESS
|
92037-1954 |
— | ||
|
92059
|
92059
92059-1840
TUBE,5X8X570
|
92059-1840 |
— | ||
|
92072
|
92072
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92072A
|
92072A
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92075
|
92075
92075-1688 DAMPER,JUNCTION BOX |
92075-1688 |
from US $9.03 |
||
