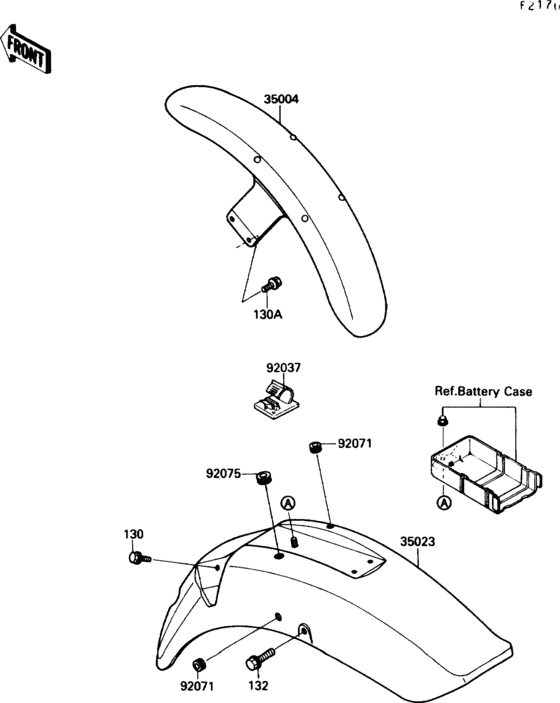

Fenders Diagram Kawasaki VN1500 Vulcan 88 SE
- Year
- 1990
- Model code
- VN1500-B4
- Sales region
- USA
- Engine Capacity
- 1500
- Frame
- JKBVNAB1 LB501401 - 999999
- Model
- Vulcan 88 SE/ VN-15 SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130AA0814 BOLT-FLANGED |
130AA0814 |
from US $0.40 |
||
|
132
|
132
132E0840 BOLT-FLANGED-SMALL |
132E0840 |
from US $1.58 |
||
|
35004
|
35004
35004-1206-H8 FRONT FENDER,EBONY |
35004-1206-H8 |
US $546.98 |
||
|
92037
|
92037
92037-1816 CLAMP |
92037-1816 |
from US $5.07 |
||
|
92071
|
92071
92071-1148 GROMMET |
92071-1148 |
US $3.37 |
||
|
92075
|
92075
92075-294 DAMPER RUBBER,HORN MO |
92075-294 |
from US $2.85 |
