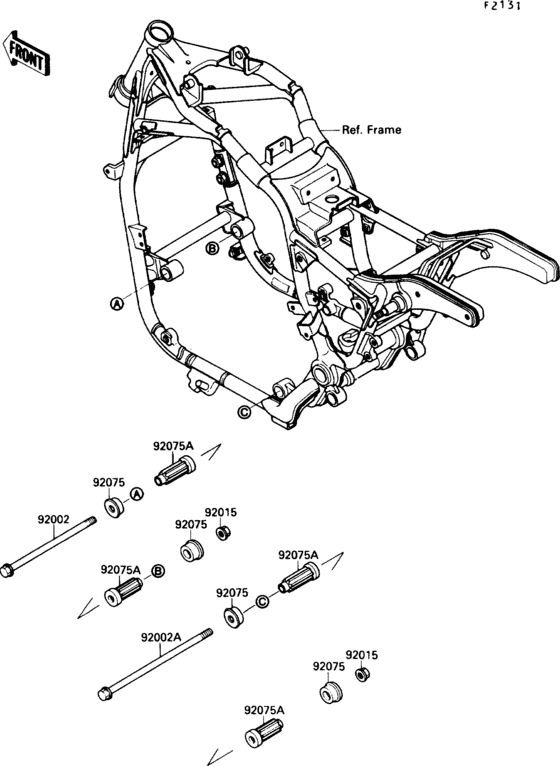

Frame fittings Diagram Kawasaki VN1500 Vulcan 88 SE
- Year
- 1990
- Model code
- VN1500-B4
- Sales region
- USA
- Engine Capacity
- 1500
- Frame
- JKBVNAB1 LB501401 - 999999
- Model
- Vulcan 88 SE/ VN-15 SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
92002
|
92002
92153-1909 BOLT,FLANGED,10X285 |
92153-1909 |
from US $12.04 |
||
|
92002A
|
92002A
92002-1540 BOLT,FLANGED,10X330 |
92002-1540 |
from US $16.63 |
||
|
92015
|
92015
92015-1180 NUT,FLANGED,10MM,BLAC |
92015-1180 |
from US $2.69 |
||
|
92075
|
92075
92075-1738 DAMPER,ENGINE BRACKET |
92075-1738 |
from US $14.89 |
||
|
92075A
|
92075A
92075-1739 DAMPER,ENGINE MOUNT,M |
92075-1739 |
from US $26.93 |
