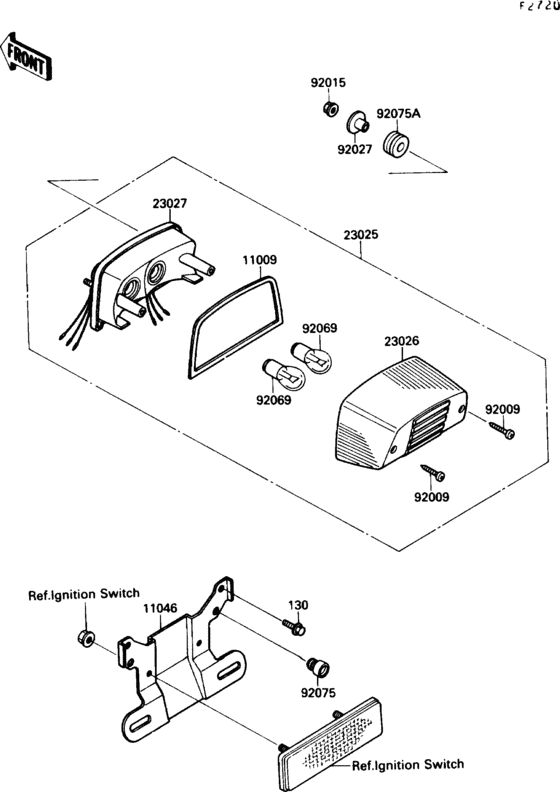

Taillight(s) Diagram Kawasaki VN1500 Vulcan 88 SE
- Year
- 1990
- Model code
- VN1500-B4
- Sales region
- USA
- Engine Capacity
- 1500
- Frame
- JKBVNAB1 LB501401 - 999999
- Model
- Vulcan 88 SE/ VN-15 SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130N0614 BOLT,FLANGED,6X14 |
130N0614 |
US $3.04 |
||
|
11009
|
11009
11009-1412 GASKET,TAIL LAMP |
11009-1412 |
from US $8.24 |
||
|
11046
|
11046
11046-1103 BRACKET,LICENSE PLATE |
11046-1103 |
US $28.10 |
||
|
23025
|
23025
23025-1170 LAMP-TAIL |
23025-1170 |
US $171.77 |
||
|
23026
|
23026
23026-1057 LENS,TAIL LAMP |
23026-1057 |
from US $63.65 |
||
|
92009
|
92009
92009-1069 SCREW,TAPPING,4X25 |
92009-1069 |
from US $2.53 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CP |
92069-059 |
from US $5.70 |
||
|
92075
|
92075
92075-035 DAMPER, RUBBER |
92075-035 |
from US $3.32 |
||
|
92075A
|
92075A
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
