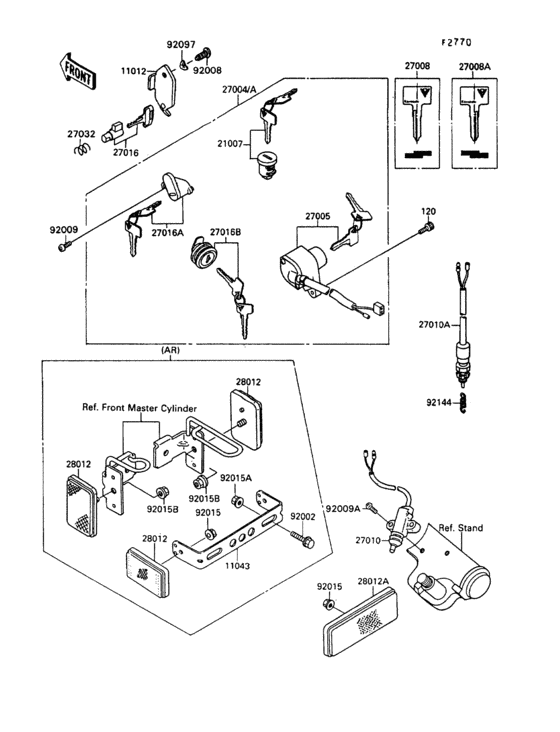

Ignition switch Diagram Kawasaki VN1500 VN-15 SE
- Year
- 1992
- Colour
- Luminous Crimson Red (L2)
- Model code
- VN1500-B6
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 88 SE/ VN-15 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0512 BOLT-SOCKET,5X12 |
120P0512 |
from US $1.13 |
||
| replacement | |||||
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
11012
|
11012
11012-1134 CAP,STEERING LOCK |
11012-1134 |
from US $5.07 |
||
|
11043
|
11043
11043-1619
Bracket,reflector,rr
|
11043-1619 |
— | ||
|
21007
|
21007
21007-5024 Rotor,lock,tank cap |
21007-5024 |
US $42.64 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5345
Switch-assy
|
27004-5345 |
— | ||
|
27005
|
27005
27005-1128 SWITCH-ASSY-IGNITION |
27005-1128 |
US $126.90 |
||
| replacements | |||||
|
27005
|
27005
27005-1208
SWITCH-ASSY-IGNITION
|
27005-1208 |
— | ||
|
27005
|
27005
27005-1197 SWITCH-ASSY-IGNITION |
27005-1197 |
US $146.93 |
||
|
27008
|
27008
27008-1138 KEY-LOCK,BLANK |
27008-1138 |
from US $15.36 |
||
|
27008A
|
27008A
27008-1139 KEY-LOCK,BLANK |
27008-1139 |
from US $15.36 |
||
|
27010
|
27010
27010-1223 SWITCH,SIDE STAND |
27010-1223 |
from US $50.27 |
||
|
27010A
|
27010A
27010-1238 SWITCH,REAR BRAKE |
27010-1238 |
from US $23.19 |
||
| replacement | |||||
|
27010A
|
27010A
27010-1477 SWITCH,REAR BRAKE |
27010-1477 |
from US $20.38 |
||
|
27016
|
27016
27016-1005 LOCK-ASSY,STEERING |
27016-1005 |
from US $60.16 |
||
|
27016A
|
27016A
27016-5129 Lock-assy,helmet |
27016-5129 |
US $49.88 |
||
| replacement | |||||
|
27016A
|
27016A
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27016B
|
27016B
27016-5133 Lock-assy,tool case c |
27016-5133 |
US $48.28 |
||
| replacement | |||||
|
27016B
|
27016B
27016-5155 LOCK-ASSY,PAD |
27016-5155 |
from US $59.09 |
||
|
27032
|
27032
27032001 SPRING-STEERING LOCK |
27032001 |
from US $3.37 |
||
|
28012
|
28012
28012-1003 REFLECTOR,REFLEX(FRON |
28012-1003 |
from US $15.68 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92002
|
92002
92002-1132 BOLT-UPSET |
92002-1132 |
from US $0.95 |
||
| replacement | |||||
|
92002
|
92002
112BA0612 BOLT-UP SET |
112BA0612 |
from US $1.25 |
||
|
92008
|
92008
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1296 SCREW,5X12 |
92009-1296 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92015A
|
92015A
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015B
|
92015B
92015-1656 NUT,FLANGED,5MM |
92015-1656 |
from US $2.38 |
||
|
92097
|
92097
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
