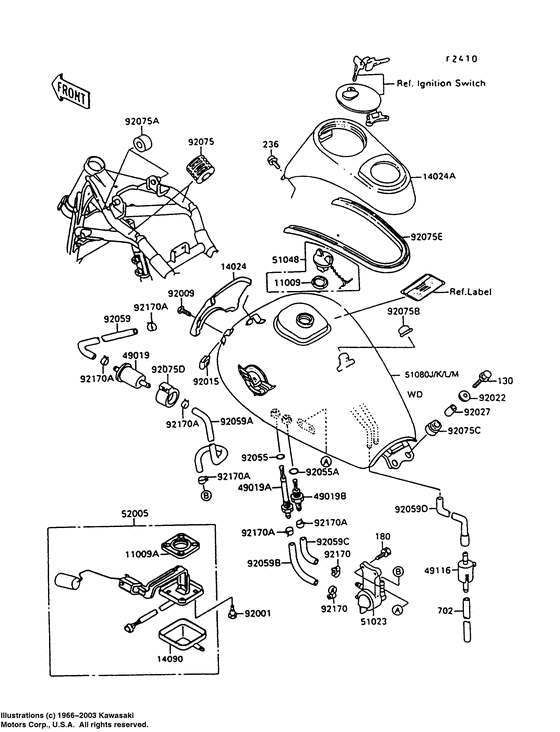

Fuel tank (Vn1500-c3) Diagram Kawasaki VN1500 Vulcan 1500L
- Year
- 1996
- Model code
- VN1500-C3
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500L/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1326 GASKET,FUEL TANKGasket,tank cap; |
11009-1326 |
from US $5.39 |
||
|
11009A
|
11009A
11009-1656
GASKET,FUEL GAUGE
Gasket,fuel gauge; |
11009-1656 |
— | ||
| replacement | |||||
|
11009A
|
11009A
11061-0292 GASKET,FUEL GAUGE,W/BGasket,fuel gauge; |
11061-0292 |
from US $11.98 |
||
|
14024
|
14024
14024-1453 COVER,FUEL TANK,FRCover,fuel tank,fr; |
14024-1453 |
US $53.87 |
||
|
14024A
|
14024A
14024-1614
COVER,FUEL TANK,UPP
Cover,fuel tank,upp; |
14024-1614 |
— | ||
|
14090
|
14090
14090-1624 COVER,FUEL GAUGECover,fuel gauge; |
14090-1624 |
from US $12.67 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $20.17 |
||
|
49019A
|
49019A
49019-1056
FILTER-FUEL,"ON"
Filter-fuel,"on"; |
49019-1056 |
— | ||
|
49019B
|
49019B
49019-1057 FILTER-FUEL,"RES"Filter-fuel,"res"; |
49019-1057 |
from US $14.67 |
||
|
49116
|
49116
49116-1063 VALVE-ASSY,BREATHERValve-assy,breather; |
49116-1063 |
US $20.84 |
||
|
51023
|
51023
51023-1136
TAP-ASSY
Tap-assy,fuel; |
51023-1136 |
— | ||
| replacement | |||||
|
51023
|
51023
51023-1365 FUEL TAP-ASSYTap-assy,fuel; |
51023-1365 |
from US $117.37 |
||
|
51048
|
51048
51048-1094
CAP-ASSY-TANK,FUEL
Cap-assy-tank,fuel; |
51048-1094 |
— | ||
|
51080J
|
51080J
51080-5230-1G TANK-CONP-FUEL,P.C.YETank-comp-fuel,p.c.yellow; |
51080-5230-1G |
US $1,437.05 |
||
|
51080K
|
51080K
51080-5230-20 TANK-COMP-FUEL,BLACKTank-comp-fuel,black mica; |
51080-5230-20 |
US $1,368.65 |
||
|
51080L
|
51080L
51080-5231-1G TANK-CONP-FUEL,P.C.YETank-conp-fuel,p.c.yellow; |
51080-5231-1G |
US $1,368.65 |
||
|
51080M
|
51080M
51080-5231-20 TANK-COMP-FUEL,BLACKTank-comp-fuel,black mica; |
51080-5231-20 |
US $1,368.65 |
||
|
52005
|
52005
52005-1084
GAUGE,FUEL
Gauge,fuel; |
52005-1084 |
— | ||
| replacement | |||||
|
52005
|
52005
52005-5008
GAUGE,FUEL
Gauge,fuel; |
52005-5008 |
— | ||
|
92001
|
92001
92001-1705
BOLT,FUEL GAGE
Bolt,fuel gauge; |
92001-1705 |
— | ||
|
92009
|
92009
92009-1651 SCREWScrew,5x10; |
92009-1651 |
from US $3.17 |
||
|
92015
|
92015
92015-1677
NUT,CLAMP,5MM
Nut,clamp,5mm; |
92015-1677 |
— | ||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer,6.5x20x1.6; |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-156
COLLAR 6.8X10X14.5
Collar,6.8x10x14.5; |
92027-156 |
— | ||
|
92055
|
92055
92055-1386 RING-O,ID=9.5Ring-o,id=9.5; |
92055-1386 |
from US $2.53 |
||
|
92055A
|
92055A
92055-1387 RING-O,ID=11.5Ring-o,11.5x1.5; |
92055-1387 |
from US $2.53 |
||
|
92059
|
92059
92059-1785 TUBE |
92059-1785 |
US $11.98 |
||
|
92059A
|
92059A
92059-1786 TUBE |
92059-1786 |
from US $14 |
||
|
92059B
|
92059B
92059-1818 TUBE,"ON"Tube,"on"; |
92059-1818 |
from US $4.05 |
||
|
92059C
|
92059C
92059-1819 TUBE,"RES"Tube,"res"; |
92059-1819 |
from US $3.89 |
||
|
92059D
|
92059D
92059-1854 TUBE |
92059-1854 |
US $6.08 |
||
|
92075
|
92075
92075-084 DAMPER RUBBERDamper,fuel tank; |
92075-084 |
from US $5.28 |
||
|
92075A
|
92075A
92075-1115 DAMPER,FUEL TANK,FRONDamper,fuel tank,fr; |
92075-1115 |
from US $4.80 |
||
|
92075B
|
92075B
92075-1445 DAMPER,SIDE COVER |
92075-1445 |
from US $4.91 |
||
|
92075C
|
92075C
92075-167 DAMPER RUBBER |
92075-167 |
from US $2.95 |
||
|
92075D
|
92075D
92075-1853 DAMPERDamper,fuel filter; |
92075-1853 |
from US $8.08 |
||
|
130
|
130
130B0625 BOLT-FLANGEDBolt-flanged,6x25; |
130B0625 |
US $4.30 |
||
| replacements | |||||
|
130
|
130
130AA0625 BOLT-FLANGEDBolt-flanged,6x25; |
130AA0625 |
from US $0.88 |
||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
180
|
180
180B0608 BOLT-UPSET-WS |
180B0608 |
from US $1.11 |
||
| replacement | |||||
|
180
|
180
180AA0608 BOLT-UPSET-WS |
180AA0608 |
from US $1.24 |
||
|
236
|
236
236B0510 SCREW-PAN-WSP-CROS,5XScrew-pan-wsp-cros,5x10; |
236B0510 |
US $2.11 |
||
| replacement | |||||
|
236
|
236
236AA0510 SCREW-PAN-WSP-CROS,5XScrew-pan-wsp-cros,5x10; |
236AA0510 |
from US $0.94 |
||
|
702
|
702
702A05550 TUBE,5X1430Tube-rubber,5x8x550; |
702A05550 |
US $25.15 |
||
| replacement | |||||
|
702
|
702
702A051430 TUBE,5X1430Tube-rubber,5x8x550; |
702A051430 |
from US $14.77 |
||
|
92075E
|
92075E
92075-1933
DAMPER,FUEL TANK COVE
Damper,fuel tank cover; |
92075-1933 |
— | ||
| replacement | |||||
|
92075E
|
92075E
92160-1873
DAMPER,FUEL TANK COVE
Damper,fuel tank cover; |
92160-1873 |
— | ||
|
92170
|
92170
92170-1278 CLAMP |
92170-1278 |
from US $7.60 |
||
| replacement | |||||
|
92170
|
92170
92173-2458 Clamp |
92173-2458 |
US $10.88 |
||
|
92170A
|
92170A
92170-2043 CLAMP |
92170-2043 |
from US $1.65 |
||
