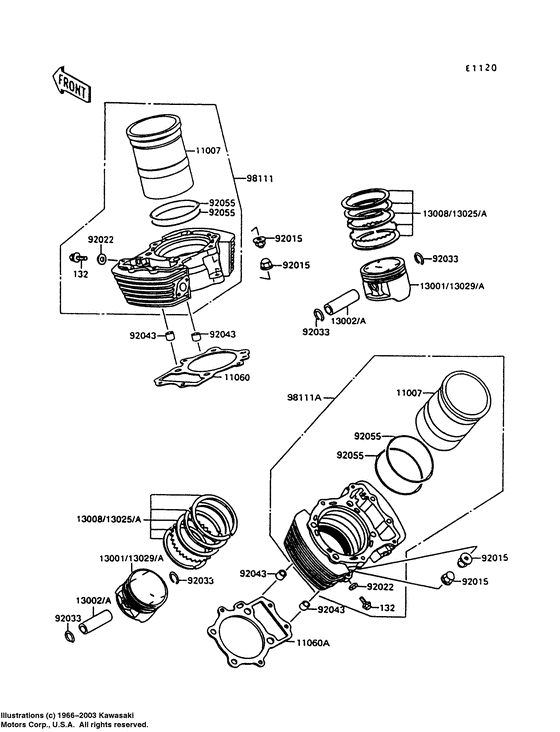

Cylinder/piston Diagram Kawasaki VN1500 Vulcan 1500L
- Year
- 1997
- Model code
- VN1500-C4
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500L/ VN-15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0610 BOLT-FLANGED-SMALL |
132E0610 |
from US $1.11 |
||
|
11007
|
11007
11007-1097 LINER-CYLINDER |
11007-1097 |
US $155.58 |
||
| replacement | |||||
|
11007
|
11007
11007-1176
LINER-CYLINDER
|
11007-1176 |
— | ||
|
11060
|
11060
11060-1737 GASKET,CYLINDER BASE,Gasket,cylinder base,fr; |
11060-1737 |
US $13.61 |
||
| replacements | |||||
|
11060
|
11060
11061-1083
GASKET,CYLINDER BASE,FR
Gasket,cylinder base,fr; |
11061-1083 |
— | ||
|
11060
|
11060
11061-1522 GASKET,CYLINDER BASE,FRGasket,cylinder base,fr; |
11061-1522 |
from US $16.10 |
||
|
11060A
|
11060A
11060-1738 GASKET,CYLINDER BASE,Gasket,cylinder base,rr; |
11060-1738 |
US $17.64 |
||
| replacements | |||||
|
11060A
|
11060A
11061-1084
GASKET,CYLINDER BASE,RR
Gasket,cylinder base,rr; |
11061-1084 |
— | ||
|
11060A
|
11060A
11061-1523 GASKET,CYLINDER BASE,RRGasket,cylinder base,rr; |
11061-1523 |
from US $16.66 |
||
|
13001
|
13001
13001-1469
PISTON-ENGINE,STD
Piston-engine,std; |
13001-1469 |
— | ||
|
13002A
|
13002A
13002-1107 PIN-PISTON |
13002-1107 |
from US $26.48 |
||
|
13008
|
13008
13008-1172 RING-SET-PISTON,STDRing-set-piston,std; |
13008-1172 |
from US $83.20 |
||
|
13025
|
13025
13025-1081 RING-SET-PISTON L, O/S 0.50Ring-set-piston l,o/s 0.50; |
13025-1081 |
from US $68.97 |
||
|
13029
|
13029
13029-1173
PISTON-ENGINE L,O/S 0
Piston-engine l,o/s 0.50; |
13029-1173 |
— | ||
|
92015
|
92015
92015-1371 NUT,CAP,8MMNut,cap,8mm; |
92015-1371 |
from US $3.73 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer,6.1x12x1; |
92022-077 |
from US $2.53 |
||
|
92033
|
92033
92033-1226 RING-SNAP |
92033-1226 |
from US $3.20 |
||
|
92043
|
92043
92043-1349 PINPin,dowel,13x16x14; |
92043-1349 |
US $3.85 |
||
| replacement | |||||
|
92043
|
92043
92043-1608 PINPin,dowel,13x16x14; |
92043-1608 |
from US $3.01 |
||
|
92055
|
92055
92055-1371 RING-O,110.5X2.5Ring-o,110.5x2.5; |
92055-1371 |
from US $6.65 |
||
|
98111
|
98111
98111-1052 CYLINDER-COMP-ENGINE,Cylinder-comp-engine,fr; |
98111-1052 |
US $862.36 |
||
|
98111A
|
98111A
98111-1053 CYLINDER-COMP-ENGINE,Cylinder-comp-engine,rr; |
98111-1053 |
US $862.36 |
||
