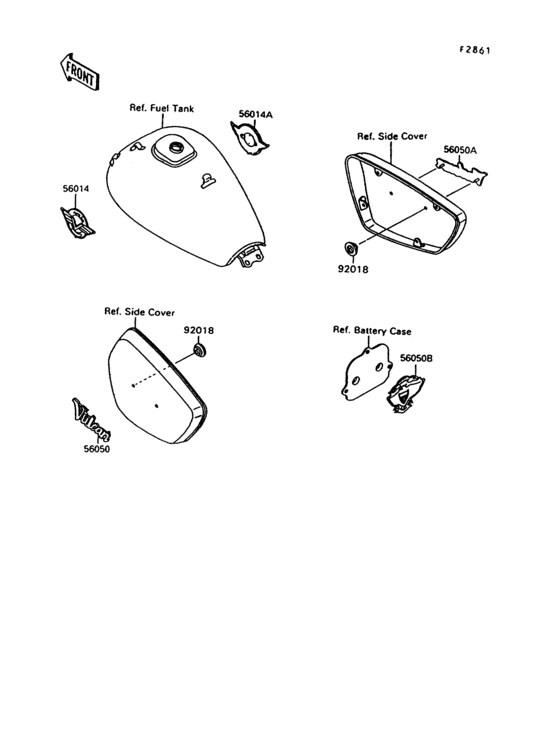

Decals Diagram Kawasaki VN1500 Vulcan 1500L
- Year
- 1997
- Colour
- Pearl Purplish Black Mica (20)
- Model code
- VN1500-C4
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500L/ VN-15
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-1183
EMBLEM,FUEL TANK,LH
|
56014-1183 |
— | ||
|
56014A
|
56014A
56014-1184
EMBLEM,FUEL TANK,RH
|
56014-1184 |
— | ||
|
56050
|
56050
56050-1006
MARK,SIDE COVER,LH,FO
|
56050-1006 |
— | ||
|
56050A
|
56050A
56050-1007
MARK,SIDE COVER,RH,FO
|
56050-1007 |
— | ||
|
56050B
|
56050B
56050-1009
MARK,BACK REST COVER,
|
56050-1009 |
— | ||
|
92018
|
92018
92018-005 NUT,LOCK,3MM |
92018-005 |
from US $2.85 |
