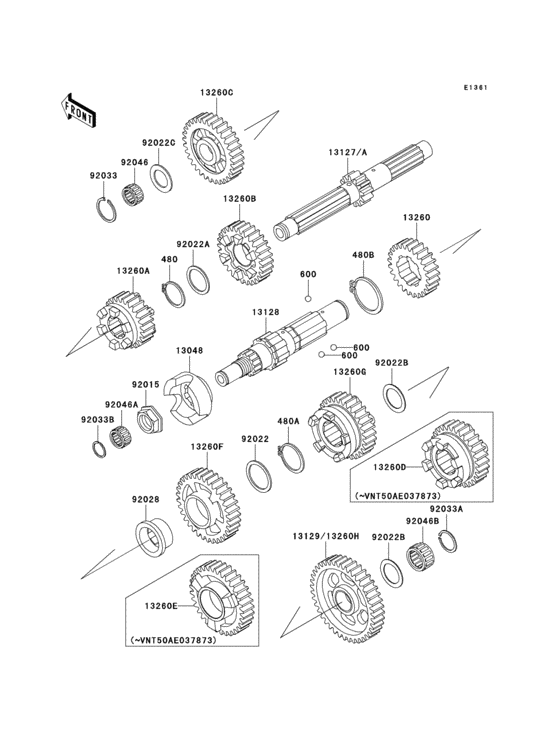

Transmission Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 1996
- Colour
- Pearl Alpine White / Pearl Chateau Gray (96)
- Model code
- VN1500-D1
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J2800 CIRCLIP 28MM |
480J2800 |
from US $1.43 |
||
|
480A
|
480A
480J3200 CIRCRIP-TYPE-C |
480J3200 |
from US $1.43 |
||
|
480B
|
480B
480J4000 CIRCLIP |
480J4000 |
from US $1.74 |
||
|
600
|
600
600A0500 BALL STEEL 5/32' |
600A0500 |
from US $0.91 |
||
|
13048
|
13048
13048-1082
CAM-DAMPER
|
13048-1082 |
— | ||
|
13127
|
13127
13127-1155
SHAFT-TRANSMISSION IN
|
13127-1155 |
— | ||
|
13128
|
13128
13128-1144
SHAFT-TRANSMISSION OU
|
13128-1144 |
— | ||
|
13129
|
13129
13129-1842 GEAR,OUTPUT LOW,40T |
13129-1842 |
from US $152.59 |
||
|
13260
|
13260
13260-1584 GEAR,OUTPUT 4TH,25T |
13260-1584 |
US $100.83 |
||
|
13260A
|
13260A
13260-1586 GEAR,INPUT 2ND,24T |
13260-1586 |
US $161.17 |
||
|
13260B
|
13260B
13260-1587 GEAR,INPUT 3RD,28T |
13260-1587 |
from US $142.57 |
||
|
13260C
|
13260C
13260-1588 GEAR,INPUT 4TH,32T |
13260-1588 |
US $142.57 |
||
|
13260D
|
13260D
13260-1618
KIT-OUTPUT GEAR
|
13260-1618 |
— | ||
| replacements | |||||
|
13260D
|
13260D
13260-1652 GEAR,OUTPUT 2ND,33T |
13260-1652 |
US $142.57 |
||
|
13260D
|
13260D
13260-1653
GEAR,OUTPUT 3RD,29T
|
13260-1653 |
— | ||
|
13260E
|
13260E
13260-1627
GEAR,OUTPUT 2ND,33T
|
13260-1627 |
— | ||
| replacements | |||||
|
13260E
|
13260E
13260-1652 GEAR,OUTPUT 2ND,33T |
13260-1652 |
US $142.57 |
||
|
13260E
|
13260E
13260-1653
GEAR,OUTPUT 3RD,29T
|
13260-1653 |
— | ||
|
13260F
|
13260F
13260-1652 GEAR,OUTPUT 2ND,33T |
13260-1652 |
US $142.57 |
||
|
13260G
|
13260G
13260-1653
GEAR,OUTPUT 3RD,29T
|
13260-1653 |
— | ||
|
92015
|
92015
92015-1610 NUT |
92015-1610 |
from US $8.55 |
||
|
92022
|
92022
92022-1693 WASHER,32X40X1.6 |
92022-1693 |
from US $4.59 |
||
|
92022A
|
92022A
92022-1854
WASHER,INPUT,3RD,LH
|
92022-1854 |
— | ||
|
92022B
|
92022B
92022-1855 WASHER,OUTPUT,LOW |
92022-1855 |
from US $6.18 |
||
|
92022C
|
92022C
92022-212 WASHER,PLAIN,22MM |
92022-212 |
from US $6.34 |
||
|
92028
|
92028
92028-1478 BUSHING,OUTPUT,2ND |
92028-1478 |
from US $35.31 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MM |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92033-1172 RING-SNAP,25MM |
92033-1172 |
from US $3.48 |
||
|
92033B
|
92033B
92033-1208 RING-SNAP |
92033-1208 |
from US $3.64 |
||
|
92046
|
92046
92046-031 BEARING,PK223013.8 |
92046-031 |
from US $17.27 |
||
|
92046A
|
92046A
92046-1154 BEARING-NEEDLE,K18242 |
92046-1154 |
from US $20.79 |
||
|
92046B
|
92046B
92046-1166
BEARING-NEEDLE,RS25/1
|
92046-1166 |
— | ||
