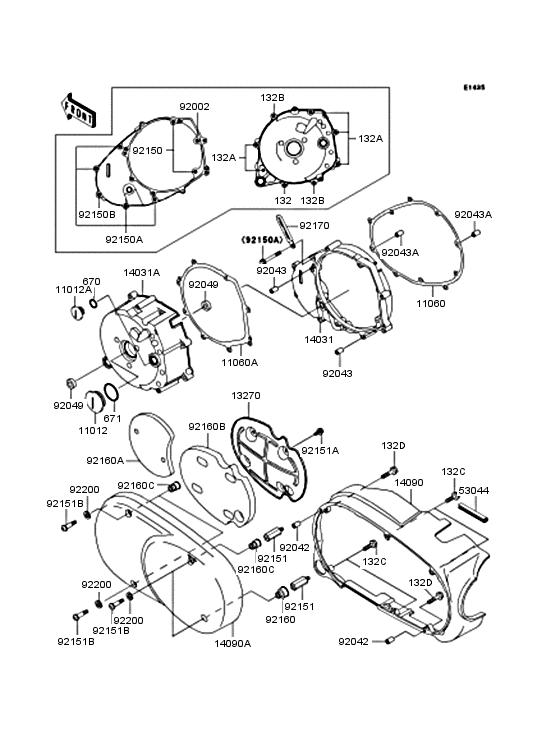

Left engine cover Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 1998
- Colour
- Ebony (H8)
- Model code
- VN1500-E1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50D 010001 - 015000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0620
BOLT,6X20
ボルト(コガタツバツキ) |
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20ボルト(コガタツバツキ) |
132BB0620 |
from US $2.38 |
||
|
132A
|
132A
132J0630
BOLT,6X30
ボルト(コガタツバツキ) |
132J0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0630 BOLT,6X30ボルト(コガタツバツキ) |
132BB0630 |
from US $2.69 |
||
|
132B
|
132B
132J0660 BOLT,6X60ボルト(コガタツバツキ) |
132J0660 |
US $40.50 |
||
| replacement | |||||
|
132B
|
132B
132BB0660 BOLT,6X60ボルト(コガタツバツキ) |
132BB0660 |
from US $3.17 |
||
|
132C
|
132C
132V0620
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132V0620 |
— | ||
| replacement | |||||
|
132C
|
132C
132BA0620 BOLT-FLANGED-SMALL,6X20ボルト(コガタツバツキ) |
132BA0620 |
from US $1.43 |
||
|
132D
|
132D
132V0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132V0630 |
from US $1.74 |
||
| replacement | |||||
|
132D
|
132D
132BA0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0630 |
from US $1.27 |
||
|
670
|
670
670B2018 0 RING,18MMO リング(ウンドウヨウ)，18MM |
670B2018 |
from US $1.77 |
||
|
671
|
671
671B2540 0 RING,40MMO リング(コテイヨウ)，40MM |
671B2540 |
from US $3.48 |
||
|
11012
|
11012
11012-1362 CAPキヤツプ |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARKキヤツプ |
11012-1363 |
from US $4.75 |
||
|
11060
|
11060
11060-1838 GASKET,GENERATOR COVEガスケツト，ゼネレ-タ カバ-，IN |
11060-1838 |
from US $16.47 |
||
| replacement | |||||
|
11060
|
11060
11061-1079 GASKET,GENERATOR COVERガスケツト，ゼネレ-タ カバ-，IN |
11061-1079 |
from US $16.95 |
||
|
11060A
|
11060A
11060-1839 GASKET,GENERATOR COVEガスケツト，ゼネレ-タ カバ-，OUT |
11060-1839 |
from US $16.16 |
||
| replacement | |||||
|
11060A
|
11060A
11061-1080 GASKET,GENERATOR COVERガスケツト，ゼネレ-タ カバ-，OUT |
11061-1080 |
from US $16.63 |
||
|
13270
|
13270
13270-1593 PLATEプレ-ト |
13270-1593 |
from US $17.60 |
||
| replacements | |||||
|
13270
|
13270
13271-1496 PLATEプレ-ト |
13271-1496 |
from US $20.91 |
||
|
13270
|
13270
92161-1179 DAMPERプレ-ト |
92161-1179 |
from US $31.42 |
||
|
14031
|
14031
14031-1348 COVER-GENERATOR,INカバ-(ゼネレ-タ)，IN |
14031-1348 |
from US $113.10 |
||
|
14031A
|
14031A
14031-1349 COVER-GENERATOR,OUTカバ-(ゼネレ-タ)，OUT |
14031-1349 |
from US $200.38 |
||
|
14090
|
14090
14090-1881 COVER,LH,INNERカバ-，LH，インナ |
14090-1881 |
from US $101.58 |
||
| replacement | |||||
|
14090
|
14090
14091-1206 COVER,LH,INNERカバ-，LH，インナ |
14091-1206 |
from US $98.44 |
||
|
14090A
|
14090A
14090-1882 COVER,LH,OUTERカバ-，LH，アウタ |
14090-1882 |
US $486.67 |
||
| replacement | |||||
|
14090A
|
14090A
14091-1297 COVER,LH,OUTERカバ-，LH，アウタ |
14091-1297 |
from US $413.82 |
||
|
53044
|
53044
53044-1312 TRIMトリム |
53044-1312 |
from US $3.80 |
||
|
92002
|
92002
92002-1566 BOLT,6X40ボルト，6X40 |
92002-1566 |
from US $3.01 |
||
|
92042
|
92042
92042-016
PIN DOWEL 6MM
ドエル ピン，6X16 |
92042-016 |
— | ||
| replacement | |||||
|
92042
|
92042
92043-1690 PIN,6X16ドエル ピン，6X16 |
92043-1690 |
from US $2.85 |
||
|
92043
|
92043
92043-1262 PIN,DOWEL,4.2X6X12ピン，4.2X6X12 |
92043-1262 |
from US $2.85 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92049
|
92049
92049-1398 SEAL-OIL,VB13193シ-ル(オイル)，VB13193 |
92049-1398 |
from US $3.64 |
||
|
92150
|
92150
92150-1021 BOLT,6X30ボルト，6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
92150
|
92150
132BB0630 BOLT,6X30ボルト，6X30 |
132BB0630 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1779 BOLT-FLANGED-SMALL,6Xボルト，6X25 |
92150-1779 |
from US $2.69 |
||
| replacement | |||||
|
92150A
|
92150A
132BB0625 BOLT-FLANGED-SMALL,6Xボルト，6X25 |
132BB0625 |
from US $1.27 |
||
|
92150B
|
92150B
92150-1967 BOLTボルト，6X35 |
92150-1967 |
from US $2.69 |
||
|
92151
|
92151
92151-1062 BOLTボルト |
92151-1062 |
US $10.61 |
||
|
92151A
|
92151A
92151-1064 BOLT,6X10ボルト，6X10 |
92151-1064 |
from US $1.94 |
||
|
92151B
|
92151B
92151-1274 BOLT,L=31ボルト，L=31 |
92151-1274 |
US $5.18 |
||
| replacement | |||||
|
92151B
|
92151B
92151-1796 BOLT,L=31ボルト，L=31 |
92151-1796 |
from US $3.80 |
||
|
92160
|
92160
92160-1718 DAMPERダンパ |
92160-1718 |
from US $4.91 |
||
|
92160A
|
92160A
92160-1719 DAMPERダンパ |
92160-1719 |
from US $18.37 |
||
|
92160B
|
92160B
92160-1720 DAMPERダンパ |
92160-1720 |
from US $31.57 |
||
|
92160C
|
92160C
92160-1730 DAMPERダンパ |
92160-1730 |
from US $5.54 |
||
|
92170
|
92170
92170-1514 CLAMP,CARBURETOR HOSEクランプ |
92170-1514 |
from US $2.85 |
||
|
92200
|
92200
92200-1296 WASHERワツシヤ |
92200-1296 |
US $2.92 |
||
