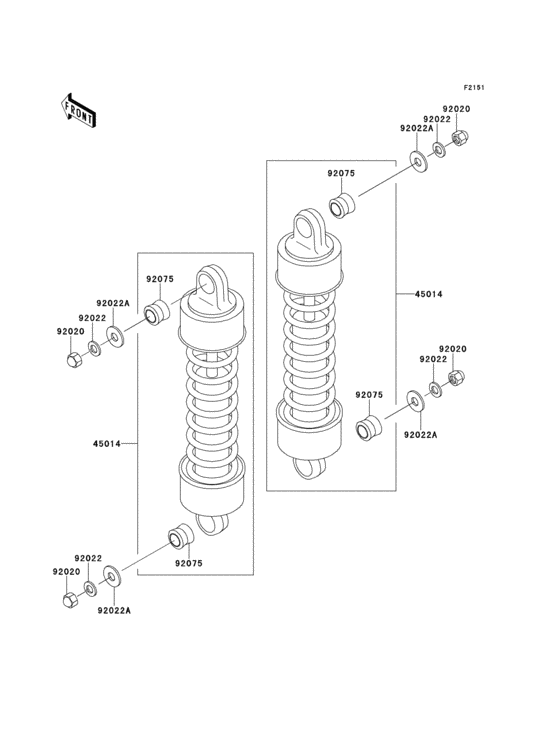

Suspension/shock absorber Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 1998
- Colour
- Candy Amaranth Red Mica / Pearl Ivory (2X)
- Model code
- VN1500-E1
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45014
|
45014
45014-1686 Shock Absorber |
45014-1686 |
from US $662.11 |
||
|
92020
|
92020
92020-003 NUT SHOCK ABSORBER |
92020-003 |
from US $3.80 |
||
|
92022
|
92022
92022-1540 WASHER,SPRING,10MM |
92022-1540 |
from US $2.85 |
||
|
92022A
|
92022A
92022-246 WASHER,PLAIN,10MM |
92022-246 |
from US $3.80 |
||
|
92075
|
92075
92075-1387 Dampers, shock absorbers |
92075-1387 |
from US $9.35 |
