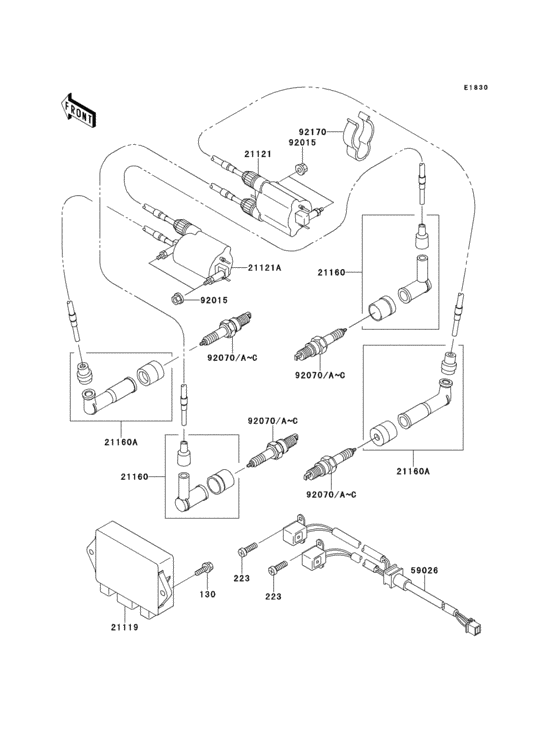

Ignition System Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1998
- Colour
- Candy Amaranth Red Mica / Pearl Ivory (2X)
- Model code
- VN1500-E1
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0620 BOLT-FLANGED,6X20 |
130H0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
223
|
223
223B0516 SCREW-PAN-WS-CROS |
223B0516 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AA0516 SCREW-PAN-WS-CROS |
223AA0516 |
from US $0.95 |
||
|
21119
|
21119
21119-1508
IGNITER
|
21119-1508 |
— | ||
|
21121
|
21121
21121-1259 COIL-IGNITION,RR |
21121-1259 |
US $140.40 |
||
| replacement | |||||
|
21121
|
21121
21121-1288 COIL-IGNITION,RR |
21121-1288 |
US $161.57 |
||
|
21121A
|
21121A
21121-1271 COIL-IGNITION,FR |
21121-1271 |
US $140.40 |
||
| replacement | |||||
|
21121A
|
21121A
21121-1289 COIL-IGNITION,FR |
21121-1289 |
from US $161.57 |
||
|
21160
|
21160
21160-1085 CAP-ASSY-PLUG |
21160-1085 |
from US $20.91 |
||
|
21160A
|
21160A
21160-1091 CAP-ASSY-PLUG |
21160-1091 |
from US $20.64 |
||
|
59026
|
59026
59026-1138
COIL-PULSING
|
59026-1138 |
— | ||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92070
|
92070
92070-1138 SPARK PLUG DPR6EA9 |
92070-1138 |
US $7.44 |
||
|
92070B
|
92070B
92070-1250 SPARK PLUG DPR5EA-9 |
92070-1250 |
from US $4.61 |
||
|
92170
|
92170
92170-1930 CLAMP,HOSE |
92170-1930 |
from US $5.86 |
||
