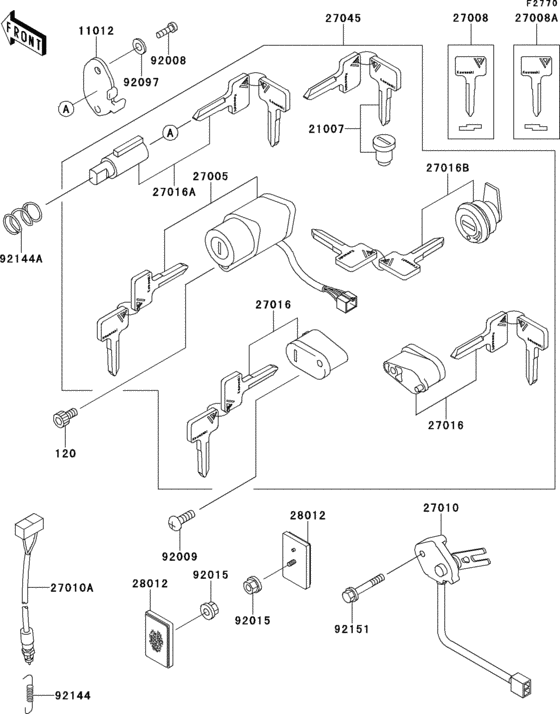

Ignition switch/locks/reflectors Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 1998
- Model code
- VN1500-E1
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAE1 WA075001 - 999999
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
11012
|
11012
11012-1586 CAP,STEERING LOCK |
11012-1586 |
from US $6.18 |
||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1209 SWITCH-ASSY-IGNITION |
27005-1209 |
from US $194.57 |
||
|
27008
|
27008
27008-1138 KEY-LOCK,BLANK |
27008-1138 |
from US $15.36 |
||
|
27008A
|
27008A
27008-1139 KEY-LOCK,BLANK |
27008-1139 |
from US $15.36 |
||
|
27010
|
27010
27010-1464 SWITCH,SIDE STAND |
27010-1464 |
from US $51.31 |
||
|
27010A
|
27010A
27010-1487 SWITCH,REAR BRAKE |
27010-1487 |
from US $25.13 |
||
|
27016
|
27016
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27016A
|
27016A
27016-5255 LOCK-ASSY,STEERING |
27016-5255 |
from US $67.17 |
||
|
27016B
|
27016B
27016-5182 LOCK-ASSY,PAD |
27016-5182 |
from US $49.22 |
||
|
27045
|
27045
27045-5270 SWITCH-ASSY |
27045-5270 |
US $464.47 |
||
|
28012
|
28012
28012-1009 Reflector-reflex |
28012-1009 |
from US $15.71 |
||
|
92008
|
92008
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1296 SCREW,5X12 |
92009-1296 |
from US $2.53 |
||
|
92015
|
92015
92015-1656 NUT,FLANGED,5MM |
92015-1656 |
from US $2.38 |
||
|
92097
|
92097
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92144A
|
92144A
92144-1222 SPRING,STEERING LOCK |
92144-1222 |
from US $3.33 |
||
|
92151
|
92151
92151-1095 BOLT,FLANGED,6X35 |
92151-1095 |
from US $1.78 |
