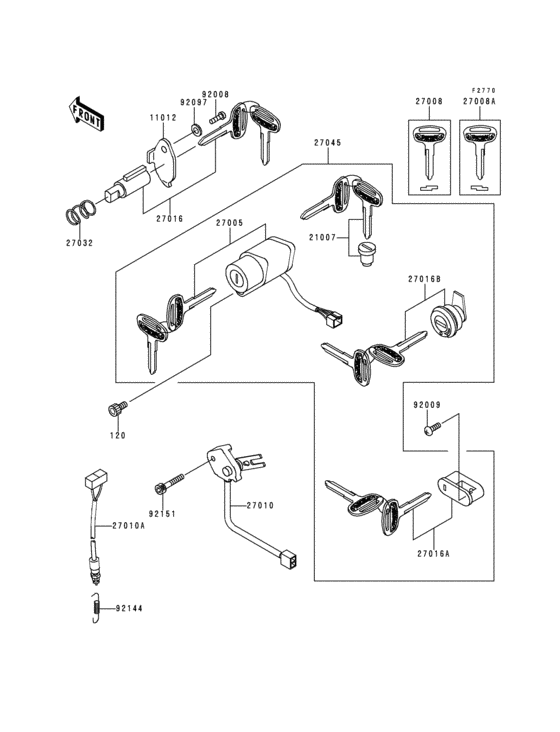

Ignition switch Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Metallic Nocturne Blue / Galaxy Silver (H6)
- Model code
- VN1500-E2
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0512 BOLT-SOCKET,5X12 |
120P0512 |
from US $1.13 |
||
| replacement | |||||
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
11012
|
11012
11012-1134 CAP,STEERING LOCK |
11012-1134 |
from US $5.07 |
||
|
21007
|
21007
21007-5041 SWITCH-ASSY,TANK CAP |
21007-5041 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1215 SWITCH-ASSY-IGNITION |
27005-1215 |
from US $204.73 |
||
|
27008
|
27008
27008-1179 KEY-LOCK,BLANK,#A |
27008-1179 |
from US $19.48 |
||
|
27008A
|
27008A
27008-1180 KEY-LOCK,BLANK,#B |
27008-1180 |
from US $19.48 |
||
|
27010
|
27010
27010-1359 SWITCH,SIDE STAND |
27010-1359 |
US $65.63 |
||
| replacement | |||||
|
27010
|
27010
27010-1464 SWITCH,SIDE STAND |
27010-1464 |
from US $51.31 |
||
|
27010A
|
27010A
27010-1370 SWITCH,REAR BRAKE |
27010-1370 |
from US $25.88 |
||
| replacement | |||||
|
27010A
|
27010A
27010-1487 SWITCH,REAR BRAKE |
27010-1487 |
from US $25.13 |
||
|
27016
|
27016
27016-1005 LOCK-ASSY,STEERING |
27016-1005 |
from US $60.16 |
||
|
27016A
|
27016A
27016-5243 Lock-assy, helmet |
27016-5243 |
US $49.88 |
||
| replacement | |||||
|
27016A
|
27016A
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27016B
|
27016B
27016-5244 LOCK-ASSY,PAD |
27016-5244 |
US $68.54 |
||
| replacement | |||||
|
27016B
|
27016B
27016-5182 LOCK-ASSY,PAD |
27016-5182 |
from US $49.22 |
||
|
27032
|
27032
27032001 SPRING-STEERING LOCK |
27032001 |
from US $3.37 |
||
|
27045
|
27045
27045-5084
Switch-assy
|
27045-5084 |
— | ||
|
92008
|
92008
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1296 SCREW,5X12 |
92009-1296 |
from US $2.53 |
||
|
92097
|
92097
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92151
|
92151
92151-1390 BOLT,SOCKET,6X35 |
92151-1390 |
from US $1.27 |
||
