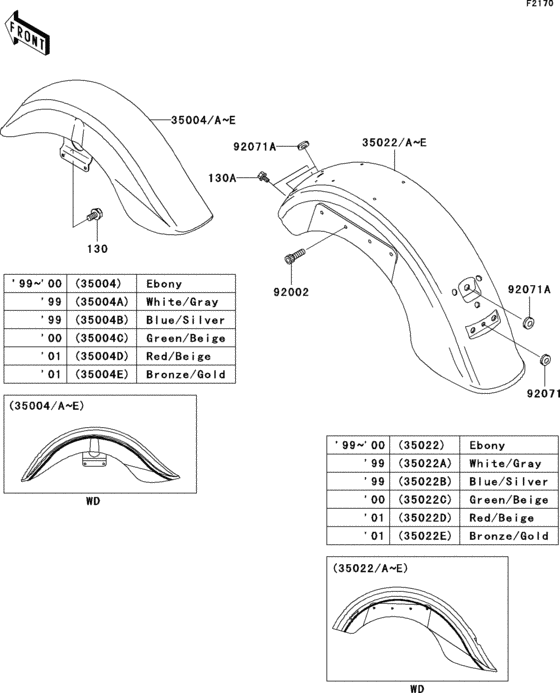

Fenders(1/2)(vn1500-e2-e4) Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 1999
- Model code
- VN1500-E2
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAE1 XA085001 - XA095000
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0814 BOLT-FLANGED,8X14 |
130CB0814 |
from US $1.24 |
||
|
130A
|
130A
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
35004A
|
35004A
35004-5172-96 FENDER-FRONT,WHITE/GR |
35004-5172-96 |
US $467.96 |
||
|
35004B
|
35004B
35004-5173-H6 FENDER-FRONT,BLUE/SIL |
35004-5173-H6 |
US $467.96 |
||
|
92002
|
92002
92002-1442 BOLT,SOCKET,8X25 |
92002-1442 |
from US $3.01 |
||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MM |
92071-019 |
from US $2.69 |
||
|
92071A
|
92071A
92071-099 GROMMET,HARNESS |
92071-099 |
from US $3.01 |
