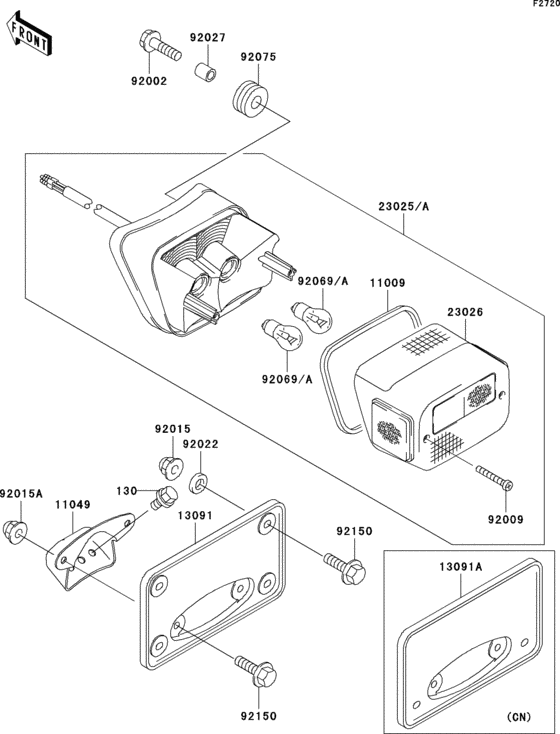

Taillight(s) Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2003
- Model code
- VN1500-E6
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAE1 3A110001 - 999999
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
11009
|
11009
11009-1660 GASKET,TAIL LAMP LENS |
11009-1660 |
from US $6.35 |
||
|
11049
|
11049
11049-1604 BRACKET,LICENSE PLATE |
11049-1604 |
from US $57.90 |
||
|
23025A
|
23025A
23025-1295 LAMP-TAIL |
23025-1295 |
from US $233.77 |
||
|
23026
|
23026
23026-1087 LENS,TAIL LAMP |
23026-1087 |
from US $56 |
||
|
92002
|
92002
92001-1774 BOLT,6X22 |
92001-1774 |
from US $0.63 |
||
|
92009
|
92009
92009-1378 SCREW, TAPPING, 4X20 |
92009-1378 |
from US $2.69 |
||
|
92015
|
92015
92210-0003 NUT |
92210-0003 |
from US $1 |
||
|
92015A
|
92015A
92015-1385 NUT,CAP,6MM |
92015-1385 |
from US $2.69 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069A
|
92069A
92069-063 BULB,12V 21/5W |
92069-063 |
from US $6.49 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENR |
92075-209 |
from US $3.73 |
||
|
92150
|
92150
92150-1133 BOLT,6X14 |
92150-1133 |
from US $2.69 |
