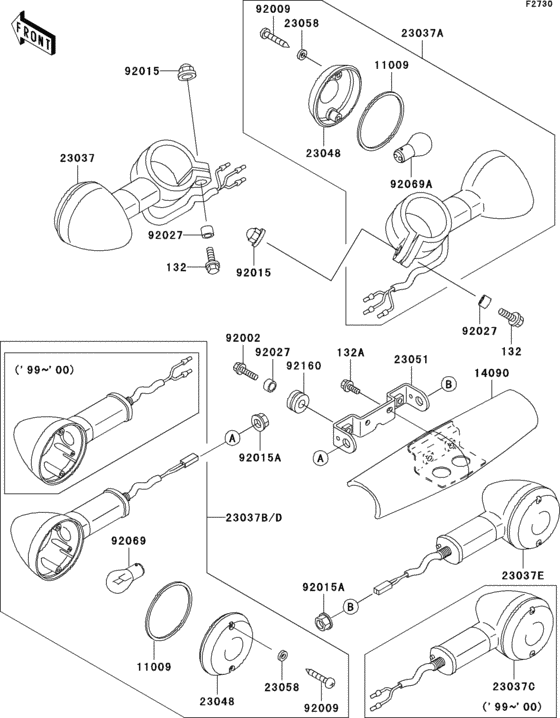

Turn signals Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2003
- Model code
- VN1500-E6
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAE1 3A110001 - 999999
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
11009
|
11009
11009-1413 GASKET,SIGNAL LAMP |
11009-1413 |
from US $3.48 |
||
|
14090
|
14090
14090-1691 COVER |
14090-1691 |
from US $48.17 |
||
|
23037
|
23037
23037-1317 LAMP-ASSY-SIGNAL,FR,L |
23037-1317 |
from US $57.30 |
||
|
23037A
|
23037A
23037-1318 LAMP-ASSY-SIGNAL,FR,R |
23037-1318 |
from US $57.30 |
||
|
23048
|
23048
23048-1066
LENS-SIGNAL LAMP
|
23048-1066 |
— | ||
| replacement | |||||
|
23048
|
23048
23048-0036 LENS-SIGNAL LAMP |
23048-0036 |
from US $9.91 |
||
|
23051
|
23051
23051-1230 BRACKET-SIGNAL LAMP,R |
23051-1230 |
from US $15.05 |
||
|
23058
|
23058
23058002 WASHER-PLAIN,4MM |
23058002 |
from US $2.85 |
||
|
92002
|
92002
92001-1774 BOLT,6X22 |
92001-1774 |
from US $0.63 |
||
|
92009
|
92009
92009-1637 SCREW,TAPPING,4X25 |
92009-1637 |
from US $2.53 |
||
|
92015
|
92015
92015-1385 NUT,CAP,6MM |
92015-1385 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-055 BULB 12V 32CP |
92069-055 |
from US $4.09 |
||
|
92069A
|
92069A
92069-060 BULB,12V 23/8W |
92069-060 |
from US $6.65 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
