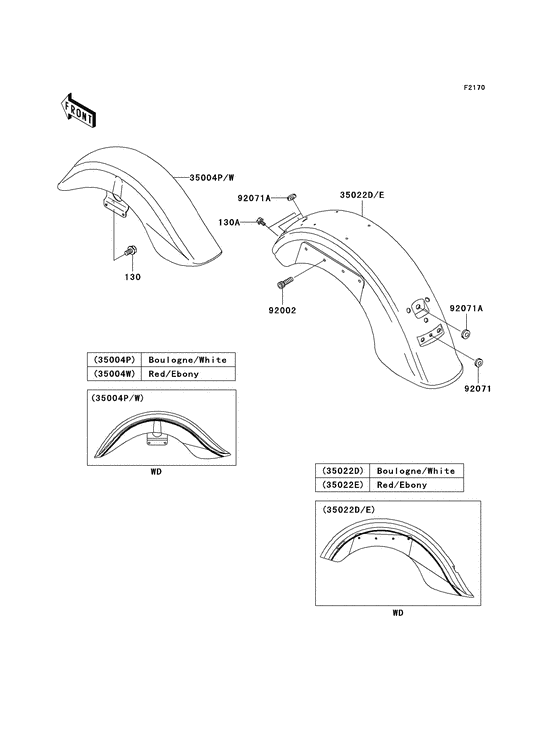

Fenders Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Model code
- VN1500-E7
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35004P
|
35004P
35004-5169-2S FENDER-FRONT,BOULOGNEFender-front,boulogne/white; |
35004-5169-2S |
from US $461.89 |
||
|
35004W
|
35004W
35004-5178-CV FENDER-FRONT,RED/EBONFender-front,red/ebony; |
35004-5178-CV |
US $530.77 |
||
|
35022D
|
35022D
35022-5026-2S FENDER-COMP-REAR,BOULFender-comp-rear,boulogne/white; |
35022-5026-2S |
from US $750.68 |
||
|
35022E
|
35022E
35022-5153-CV FENDER-COMP-REAR,RED/Fender-comp-rear,red/ebony; |
35022-5153-CV |
from US $787.55 |
||
|
130
|
130
130J0814 BOLT-FLANGEDBolt-flanged,8x14; |
130J0814 |
US $31.30 |
||
| replacements | |||||
|
130
|
130
130BB0814 BOLT-FLANGEDBolt-flanged,8x14; |
130BB0814 |
from US $1.27 |
||
|
130
|
130
130CB0814 BOLT-FLANGED,8X14Bolt-flanged,8x14; |
130CB0814 |
from US $1.24 |
||
|
130A
|
130A
130J0816
BOLT-FLANGED
Bolt-flanged,8x16,black; |
130J0816 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0816 BOLT-FLANGEDBolt-flanged,8x16,black; |
130BB0816 |
from US $1.43 |
||
|
92002
|
92002
92002-1442 BOLT,SOCKET,8X25Bolt,socket,8x25; |
92002-1442 |
from US $3.01 |
||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MMGrommet,10mm; |
92071-019 |
from US $2.69 |
||
|
92071A
|
92071A
92071-099 GROMMET,HARNESSGrommet,13mm; |
92071-099 |
from US $3.01 |
||
