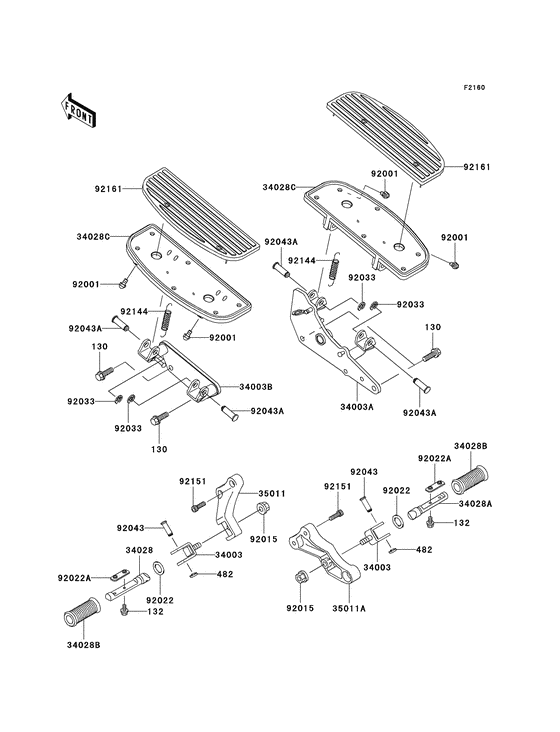

Footrests Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Model code
- VN1500-E7
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1030
BOLT-FLANGED,10X30,BL
Bolt-flanged,10x30; |
130J1030 |
— | ||
| replacements | |||||
|
130
|
130
130BB1030 BOLT-FLANGED,10X30,BLBolt-flanged,10x30; |
130BB1030 |
from US $1.43 |
||
|
130
|
130
130CB1030 BOLT-FLANGED,10X30,BLBolt-flanged,10x30; |
130CB1030 |
from US $1.43 |
||
|
132
|
132
132J0510 BOLT-FLANGED-SMALL |
132J0510 |
US $2.12 |
||
| replacement | |||||
|
132
|
132
132BB0510 BOLT-FLANGED-SMALL |
132BB0510 |
US $4.20 |
||
|
482
|
482
482L7000 CIRCLIP-TYPE-E |
482L7000 |
US $3.64 |
||
| replacement | |||||
|
482
|
482
482EA7000 CIRCLIP-TYPE-E |
482EA7000 |
from US $3.01 |
||
|
34003
|
34003
34003-0015 HOLDER-STEP,RRHolder-step,rr; |
34003-0015 |
from US $20.38 |
||
|
34003A
|
34003A
34003-1449 HOLDER-STEP,FR,RHHolder-step,fr,rh; |
34003-1449 |
from US $127.01 |
||
|
34003B
|
34003B
34003-1481 HOLDER-STEP,FR,LHHolder-step,fr,lh; |
34003-1481 |
from US $105.62 |
||
|
34028
|
34028
34028-1219
STEP,RR,LH
Step,rr,lh; |
34028-1219 |
— | ||
|
34028A
|
34028A
34028-1220 STEP,RR,RHStep,rr,rh; |
34028-1220 |
from US $54.52 |
||
|
34028B
|
34028B
34028-1221
STEP,RR,RUBBER
Step,rr,rubber; |
34028-1221 |
— | ||
|
34028C
|
34028C
34028-1497
STEP,FR
Step,fr; |
34028-1497 |
— | ||
|
35011
|
35011
35011-1770 STAY,REAR STEP,LHStay,rear step,lh; |
35011-1770 |
from US $93.65 |
||
|
35011A
|
35011A
35011-1922 STAY,REAR STEP,RHStay,rear step,rh; |
35011-1922 |
from US $99.18 |
||
|
92001
|
92001
92001-1905 BOLT,BANK SENSORBolt,bank sensor; |
92001-1905 |
from US $4.75 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1428 |
from US $3.01 |
||
|
92022
|
92022
92022-1568 WASHER,20X30X2.3Washer,20x30x2.3; |
92022-1568 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1874 WASHER,STEPWasher,step; |
92022-1874 |
US $7.79 |
||
|
92033
|
92033
92033-1166 RING-SNAP,10MMRing-snap,10mm; |
92033-1166 |
from US $2.53 |
||
|
92043
|
92043
92043-1339 PINPin,8x36.5; |
92043-1339 |
from US $5.23 |
||
|
92043A
|
92043A
92043-1358 PIN,12X37Pin,12x37; |
92043-1358 |
from US $5.39 |
||
|
92144
|
92144
92144-1266 SPRING,BRAKE PEDAL RESpring,brake pedal return; |
92144-1266 |
from US $5.70 |
||
|
92151
|
92151
92151-1525 BOLT,SOCKET,8X25Bolt,socket,8x25; |
92151-1525 |
from US $1.90 |
||
|
92161
|
92161
92161-1154 DAMPER,FRONT STEPDamper,front step; |
92161-1154 |
US $49.22 |
||
