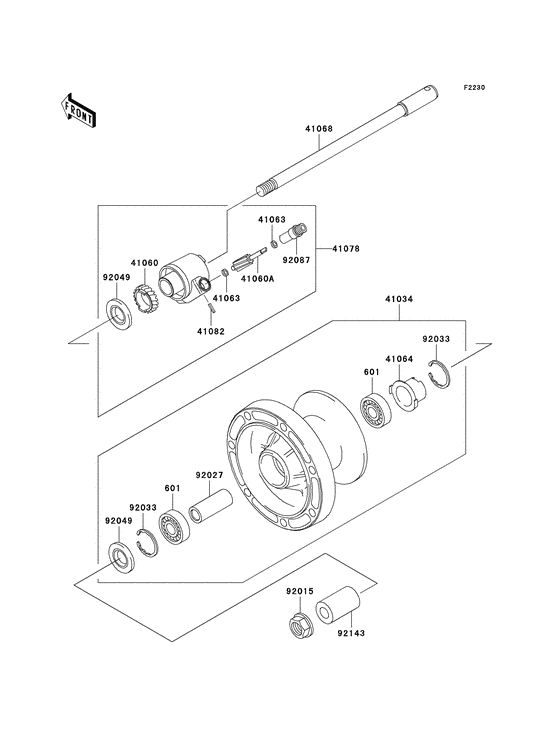

Front wheel Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Model code
- VN1500-E7
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6004UU BEARING,BALL,*6004UU*Bearing-ball,#6004uuc3; |
601B6004UU |
from US $25.58 |
||
|
41034
|
41034
41034-1259 DRUM-ASSY,FRONT BRAKEDrum-assy,front brake; |
41034-1259 |
from US $730.36 |
||
|
41060
|
41060
41060-1160 GEAR-METER SCREW,25TGear-meter screw,25t; |
41060-1160 |
US $22.29 |
||
|
41060A
|
41060A
41060-1161 GEAR-METER SCREW,9TGear-meter screw,9t; |
41060-1161 |
from US $17.03 |
||
|
41063
|
41063
41063001 WASHER THRST SPD PINIWasher,5.1x9x0.4; |
41063001 |
from US $3.17 |
||
|
41064
|
41064
41064-1056 RECEIVER-SPEEDOMETER |
41064-1056 |
from US $18.53 |
||
|
41068
|
41068
41068-1378 AXLE,FRAxle,fr; |
41068-1378 |
from US $51.31 |
||
| replacement | |||||
|
41068
|
41068
41068-0058 AXLE,FRAxle,fr; |
41068-0058 |
from US $48.02 |
||
|
41078
|
41078
41078-1107
CASE-ASSY-METER GEAR
|
41078-1107 |
— | ||
|
41082
|
41082
41082001 PIN,SPRINGPin,spring; |
41082001 |
from US $3.01 |
||
|
92015
|
92015
92015-1993 NUT,FLANGED,18MMNut,flanged,18mm; |
92015-1993 |
from US $6.02 |
||
|
92027
|
92027
92027-1752 COLLAR,20.2X28X70Collar,20.2x28x70; |
92027-1752 |
from US $12.04 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MMRing-snap,42mm; |
92033-1041 |
from US $3.48 |
||
|
92049
|
92049
92049-1057 OIL SEAL,BJN30427-C3Seal-oil,bjn30427-c3; |
92049-1057 |
from US $8.86 |
||
|
92087
|
92087
92087-1056 BUSHING-METER GEAR |
92087-1056 |
from US $15.36 |
||
|
92143
|
92143
92143-1837 COLLAR,FR AXLE,LH,L=4Collar,fr axle,lh,l=48.5; |
92143-1837 |
from US $21.84 |
||
