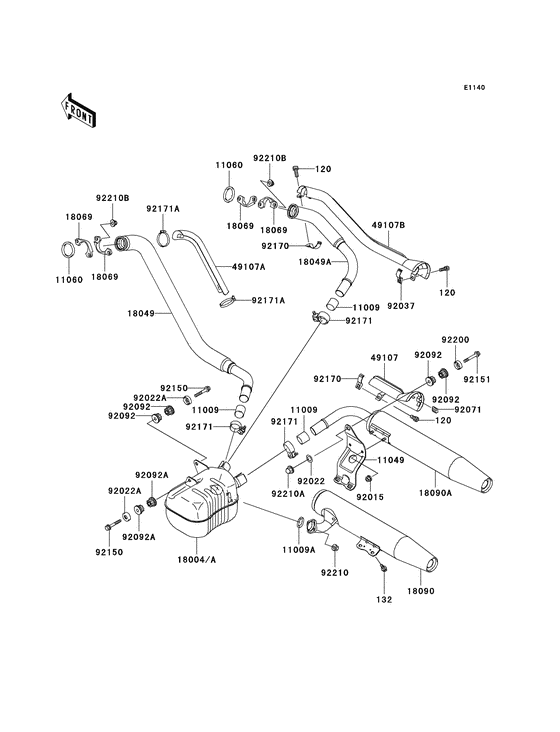

Muffler Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Model code
- VN1500-E7
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120Z0620 BOLT-SOCKET |
120Z0620 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CD0620 BOLT-SOCKET |
120CD0620 |
from US $1.24 |
||
|
132
|
132
132E0814
BOLT-FLANGED-SMALL
|
132E0814 |
— | ||
|
11009
|
11009
11009-1865 GASKET,MUFFLER CONNECGasket,muffler connecting; |
11009-1865 |
from US $18.37 |
||
| replacement | |||||
|
11009
|
11009
11061-0360 GASKET,MUFFLER CONNECGasket,muffler connecting; |
11061-0360 |
from US $15.09 |
||
|
11009A
|
11009A
11009-1894 GASKET,EXHAUST HOLDERGasket,exhaust holder; |
11009-1894 |
from US $5.86 |
||
|
11049
|
11049
11049-1540 BRACKET,MUFFLERBracket,muffler; |
11049-1540 |
US $27.83 |
||
|
11060
|
11060
11060-1119 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11060-1119 |
from US $9.91 |
||
|
18004
|
18004
18004-1091 CHAMBER-PREMUFFLER |
18004-1091 |
US $986.04 |
||
|
18004A
|
18004A
18004-1094 CHAMBER-PREMUFFLER |
18004-1094 |
from US $587.87 |
||
|
18049
|
18049
18049-1887 PIPE,EXHAUST,FRPipe-exhaust,fr; |
18049-1887 |
from US $377.52 |
||
|
18049A
|
18049A
18049-1888 PIPE-EXHAUST,RRPipe-exhaust,rr; |
18049-1888 |
from US $219.25 |
||
|
18069
|
18069
18069-1161 HOLDER-EXHAUST PIPE |
18069-1161 |
from US $30.26 |
||
|
18090
|
18090
18090-1652 BODY-COMP-MUFFLER,FR,Body-comp-muffler,fr,lwr; |
18090-1652 |
US $740.11 |
||
|
18090A
|
18090A
18090-1653 BODY-COMP-MUFFLER,RR,Body-comp-muffler,rr,upp; |
18090-1653 |
from US $762.32 |
||
|
49107
|
49107
49107-1103 COVER-EXHAUST PIPE,FRCover-exhaust pipe,muffler,rh; |
49107-1103 |
from US $128.06 |
||
|
49107A
|
49107A
49107-1115 COVER-EXHAUST PIPE |
49107-1115 |
from US $141.22 |
||
|
49107B
|
49107B
49107-1156 COVER-EXHAUST PIPE,RRCover-exhaust pipe,rr; |
49107-1156 |
US $216 |
||
|
92015
|
92015
92015-1936 NUT,8MMNut,8mm; |
92015-1936 |
from US $3.48 |
||
|
92022
|
92022
92022-044 WASHER-PL-10.5X26X2.3Washer,10.5x26x2.3; |
92022-044 |
from US $3.20 |
||
|
92022A
|
92022A
92022-1302 WASHER,10.5X30X2.3,BLWasher,10.5x30x2.3,black; |
92022-1302 |
from US $4.95 |
||
|
92037
|
92037
92037-1613 CLAMP,MUFFLER COVERClamp,exhaust pipe cover; |
92037-1613 |
from US $9.98 |
||
|
92071
|
92071
92071-1226 GROMMET |
92071-1226 |
from US $4.12 |
||
|
92092
|
92092
92092-1013 BUSHING-RUBBERBushing-rubber,muffler; |
92092-1013 |
from US $11.09 |
||
|
92092A
|
92092A
92092-1081 BUSHING-RUBBER |
92092-1081 |
from US $18.95 |
||
|
92150
|
92150
92150-1749 BOLT,10X55Bolt,10x55; |
92150-1749 |
from US $5.31 |
||
|
92151
|
92151
92151-1332 BOLTBolt,flanged,10x57; |
92151-1332 |
from US $4.12 |
||
|
92170
|
92170
92170-1645 CLAMP |
92170-1645 |
from US $6.65 |
||
|
92171
|
92171
92171-0062 CLAMP,CHAMBER-MUFFLERClamp,chamber-muffler; |
92171-0062 |
from US $12.12 |
||
|
92171A
|
92171A
92171-0137 CLAMP |
92171-0137 |
from US $6.06 |
||
|
92200
|
92200
92200-1664 WASHER,10.5X36X2Washer,10.5x36x2; |
92200-1664 |
from US $8.55 |
||
|
92210
|
92210
92210-0076 NUT,8MMNut,8mm; |
92210-0076 |
from US $2.85 |
||
|
92210A
|
92210A
92210-1121 NUT,CAP,10MMNut,cap,10mm; |
92210-1121 |
from US $3.37 |
||
|
92210B
|
92210B
92210-1132 NUTNut,cap,8mm; |
92210-1132 |
from US $2.53 |
||
