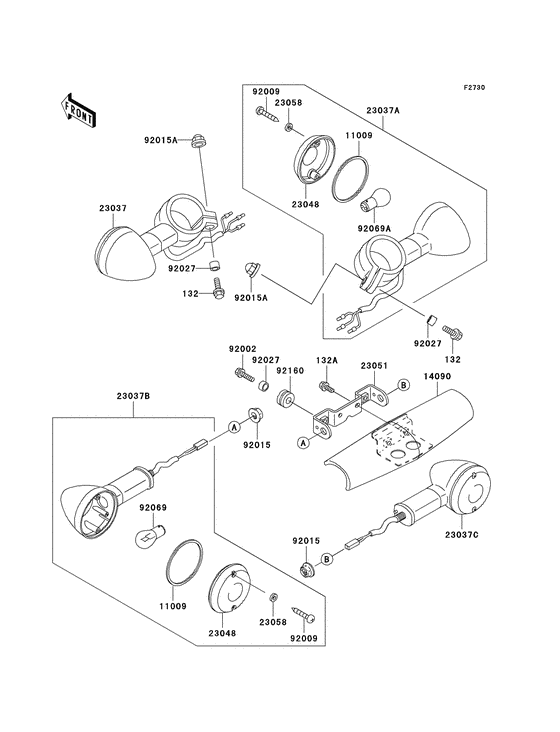

Turn signals Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Model code
- VN1500-E7
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0620
BOLT
|
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
11009
|
11009
11009-1413 GASKET,SIGNAL LAMPGasket,signal lamp; |
11009-1413 |
from US $3.48 |
||
|
14090
|
14090
14090-1691 COVER |
14090-1691 |
from US $48.17 |
||
|
23037
|
23037
23037-1317 LAMP-ASSY-SIGNAL,FR,LLamp-assy-signal,fr,lh; |
23037-1317 |
from US $57.30 |
||
|
23037A
|
23037A
23037-1318 LAMP-ASSY-SIGNAL,FR,RLamp-assy-signal,fr,rh; |
23037-1318 |
from US $57.30 |
||
|
23037B
|
23037B
23037-1384 LAMP-ASSY-SIGNAL,RR,LLamp-assy-signal,rr,lh; |
23037-1384 |
from US $75.03 |
||
|
23037C
|
23037C
23037-1385 LAMP-ASSY-SIGNAL,RR,RLamp-assy-signal,rr,rh; |
23037-1385 |
from US $75.03 |
||
|
23048
|
23048
23048-1066
LENS-SIGNAL LAMP
|
23048-1066 |
— | ||
| replacement | |||||
|
23048
|
23048
23048-0036 LENS-SIGNAL LAMP |
23048-0036 |
from US $9.91 |
||
|
23051
|
23051
23051-1230 BRACKET-SIGNAL LAMP,RBracket-signal lamp,rr; |
23051-1230 |
from US $15.05 |
||
|
23058
|
23058
23058002 WASHER-PLAIN,4MMWasher,plain,4mm; |
23058002 |
from US $2.85 |
||
|
92002
|
92002
92002-1262
BOLT,6X22
Bolt,6x22; |
92002-1262 |
— | ||
| replacement | |||||
|
92002
|
92002
92001-1774 BOLT,6X22Bolt,6x22; |
92001-1774 |
from US $0.63 |
||
|
92009
|
92009
92009-1637 SCREW,TAPPING,4X25Screw,tapping,4x25; |
92009-1637 |
from US $2.53 |
||
|
92015
|
92015
92015-1356 NUT,10MMNut,10mm; |
92015-1356 |
from US $1.74 |
||
|
92015A
|
92015A
92015-1385 NUT,CAP,6MMNut,cap,6mm; |
92015-1385 |
from US $2.69 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDERCollar,6.8x10x12; |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-055 BULB 12V 32CPBulb,12v 32cp(23w); |
92069-055 |
from US $4.09 |
||
|
92069A
|
92069A
92069-060 BULB,12V 23/8WBulb,12v 32/3cp(23/8w); |
92069-060 |
from US $6.65 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
